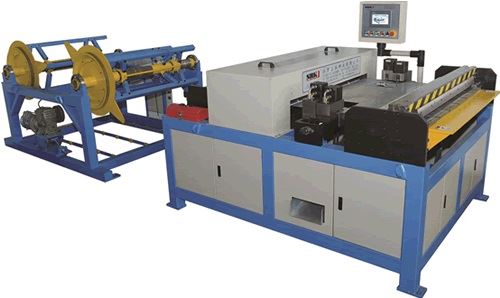

Auto Duct Kab 3
Auto Duct Line III yog tsim los ntawm Decoiler, qib tshuab slotting chav tsev, "V" thiab "square" slotting unit, txiav chav tsev, thiab khoov tsev. Tus qauv "V" thiab "square" slotting li yog siv rau TDF flange ducts, thiab "square" slotting ntaus ntawv kuj siv tau los tsim TDC flanges.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Product Introduction
Tsis Siv Neeg Kab SBAL-III
Nta
Auto Duct Line III yog tsim los ntawm Decoiler, qib tshuab slotting chav tsev, "V" thiab "square" slotting unit, txiav chav tsev, thiab khoov tsev. Tus qauv "V" thiab "square" slotting li yog siv rau TDF flange ducts, thiab "square" slotting ntaus ntawv kuj siv tau los tsim TDC flanges. Lub tsev khoov tuaj yeem ua rau lub kaum sab xis kom phim Pittsburgh, lossis cov ntawv hlau tuaj yeem khoov rau hauv "square" lossis "L" duab. Txhim kho qhov kev siv ntawm lub rooj tsavxwm zoo heev, txo kev siv zog, thiab txo kev ua haujlwm. Cov hluav taws xob tswj ib feem ntawm cov kab ntau lawm txais tag nrho servo tswj; lub kaw lus tswj muaj lub kaw lus tawm tswv yim kaw lus, thiab qhov tseeb thiab ruaj khov yog pom tseeb txhim kho. Qhov siab tshaj plaws kev khiav hauj lwm ceev yog 18m / min. Qhov ntev kam rau ua yog ±0.5mm; kab pheeb ces kaum kam rau ua yog ±0.8mm. Lub kaw lus tuaj yeem ua tau raws li qhov muaj peev xwm ntawm 1500m² huab cua duct ib zaug (8 teev). Auto Duct Line III tuaj yeem tsav cov yeeb nkab blanking. Nyob rau tib lub sijhawm, nws yog qhov tsim nyog rau ntau yam ntau lawm xws li TDF / lub kaum sab xis steel / plug-in flange txoj kev. Lub kaum sab xis steel flanges thiab plug-in flanges tuaj yeem raug khoov rau hauv cov kav dej square.
1. Aluminium alloy suspension caj npab ua rau lub tshuab ua haujlwm yooj yim.
2. Lub built-in tswj txee txo cov xaim raws li tag nrho cov qauv thiab ua kom yooj yim txav.
3. Cov kev teeb tsa tuaj txawv teb chaws yog qhov ruaj khov thiab nyiam siv. CNC Air Duct Line yog cov kav dej ua kab nrog lub siab tshaj plaws automation thiab kev ua haujlwm siab tshaj plaws hauv Rectangular duct kab tshuab. Dhau li ntawd, peb kuj tuaj yeem kho cov cav tov raws li koj qhov kev thov tshwj xeeb.
Basic Configuration
Ib qho hluav taws xob Decoiler (2 coils).
Ib txheej txheej thiab cov khoom siv beading.
Lub hydraulic lub kaum sab xis-shearing tshuab nrog plaub txheej ntawm cov tuag.
Lub tshuab hydraulic shearing tshuab, hydraulic dabtsi yog khoov tshuab
Ib txheej ntawm CNC computer tswj system thiab ntau lawm software.
Ib Tsav
Technical Data
|
Hom |
SBAL-III -1250 |
SBAL-III -1550 |
|
Thickness |
0 5-1.2 hli |
0 5-1.2 hli |
|
Dav |
1250 hli |
1550 hli |
|
Ua hauj lwm ceev |
18m / min |
18m / min |
|
Coiler Max-qhov hnyav |
8 000kg |
8 000kg |
|
Hwj chim |
9.5 kwm |
9.5 kwm |
|
Qhov hnyav |
3250kg ib |
4000kg |
|
Dimension |
Lub tshuab loj: 2300 × 1800 × 1400mm Decoiler: 2300 × 1750 × 1650mm |
Lub tshuab loj: 2300 × 2100 × 1400mm Decoiler: 2300 × 1750 × 1650mm |
