Seamwelder
Seam welding tshuab yog hais txog lub tshuab vuam siv lub tshuab uas cov vuam tau sib sau ua ke rau hauv lub puab tsaig lossis pob tw thiab muab tso rau ntawm ob lub tshuab electrodes.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Product Introduction

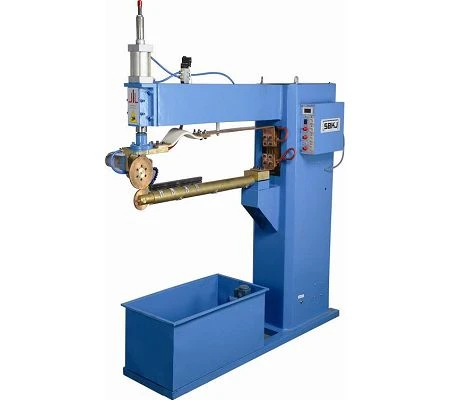

Seamwelder
Kev piav qhia
Seam welding tshuab yog hais txog lub tshuab vuam siv lub tshuab uas cov vuam tau sib sau ua ke rau hauv lub puab tsaig lossis pob tw thiab muab tso rau ntawm ob lub tshuab electrodes. Cov menyuam electrode nias lub vuam thiab rotates, tsis tu ncua los yog intermittently pulses hwj chim los tsim ib tug nruam weld. Nws tseem tuaj yeem hais tau tias lub tshuab seam vuam yog ib qho kev hloov pauv ntawm qhov chaw vuam. Seam welding yog siv dav hauv kev tsim cov pob qij txha uas xav tau nruj. Qee lub sij hawm nws kuj yog siv los ua cov khoom siv uas tsis yog-sealing sheet hlau. Qhov tuab ntawm cov khoom siv welded feem ntau yog 0 4-2.5mm.
Hais txog kev pab cuam tom qab muag, peb muaj cov kws tshaj lij uas tuaj yeem qhia koj yuav ua li cas ua haujlwm tshuab los ntawm kev yees duab thiab peb tuaj yeem muab kev pabcuam engineer txawv tebchaw lossis koj tuaj yeem xa koj cov neeg ua haujlwm rau peb lub Hoobkas hauv Suav teb kom kawm txog kev ua haujlwm.
Technical Data
|
Hom |
SBFN -35 |
SBFN -55 |
SBFN -75 |
SBFN -100 |
|
Thickness |
{0}}4-1.0mm |
0 4-1.2 hli |
0 4-1.5 hli |
{0}}4-2.0mm |
|
Max. input muaj peev xwm |
45 KVA ua |
55 kVA ua |
75 kVA ua |
110 KVA UAS |
|
Max. luv luv tam sim no |
6200A |
11000A |
16000A |
26000A |
|
Max. siab ntawm electrode |
400 KGF |
600 KGF |
1000 KGF |
1000 KGF |
|
Kev khiav dej txias |
6L / min |
6L / min |
8L / min |
8L / min |
|
Tes ntev |
600 hli |
600 hli |
600 hli |
600 hli |
|
Electrode taug kev |
80 hli |
80 hli |
80 hli |
80 hli |
|
Ua hauj lwm ceev |
0 5-3m/min |
0 5-3m/min |
0 5-3m/min |
0 5-3m/min |
|
Qhov hnyav |
328 Kg |
3 78kg |
4 28 Kg |
4 78kg |
|
Dimension |
1800 × 610 × 1930mm |
1800 × 610 × 1930mm |
1800 × 610 × 1930mm |
1800 × 610 × 1930mm |
