Spiral Tubeformer SBTF -1602

Send Inquiry

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Product Introduction

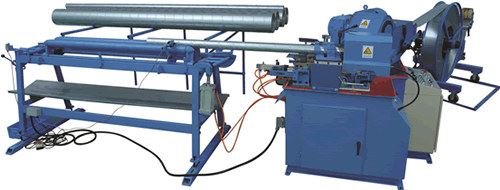

SPIRAL TUBEFORMER SBTF-1602

Kev piav qhia

Cov txheej txheem module muab rau cov neeg siv khoom muaj peev xwm xaiv ntawm ntau txoj kev xaiv, tso cai rau nws los tsim lub tshuab ntau txoj kev xaiv, tso cai rau nws los tsim lub tshuab rau nws cov kev xav tau tshwj xeeb. Cov zaus tswj lub ntsiab tsav kom muaj kev nrawm nrawm thiab yuav luag tsis muaj suab nrov. Qhov zoo tshaj plaws patented ya slitter txiav cov raj kom ntev yam tsis muaj suab nrov lossis kub kub raws li paub los ntawm cov saws thiab muab cov raj du xaus yam tsis muaj kev cuam tshuam.

Cov qauv tsim thiab kev xaiv ua tiav cov kev xav tau hauv HVAC los tsim cov hlau me me, galvanized steel, stainless hlau lossis txhuas.

Lub tsev corrugation tso cai rau txo cov nqi ntawm cov khoom siv thiab ua rau cov kav dej loj dua nruj dua.

Txog kev pab cuam tom qab muag, peb muaj cov kws tshaj lij uas tuaj yeem qhia koj yuav ua li cas ua haujlwm tshuab los ntawm kev yees duab thiab peb tuaj yeem muab kev pabcuam engineers txawv tebchaw lossis koj tuaj yeem xa koj cov neeg ua haujlwm rau peb lub Hoobkas hauv Suav teb kom kawm txog kev ua haujlwm.

Technical Data

Txoj kab uas hla	80mm - 1600mm
Thickness ntau	Galvanized hlau	0 4 -1.3 hli
	Stainless hlau	0 4-0.8 hli
	Aluminium	0 4-1.3 hli
Sawb dav	Standard 137 hli	{{0}} 4-1.0 mm
	Standard 140 hli	1 1-1.3 hli
Xauv seam	Sab nraud xauv seam, sab hauv xauv raws li kev thov
Corrugations	Ib los yog ob lub hlaws (Yeem)
Txiav qhov system	Lub patented ya slitter
Kev xaiv	Corrugated unit
Qhov hnyav	2900kg ib
Dimension	Lub tshuab loj	1900 * 2050 * 1500 hli
	Decoiler	1780 * 1130 * 1250mm
	Lub rooj khiav	2700 * 950 * 1200 hli
