Ac Duct Hydraulic Pipe Luj Ua Tshuab Gorelocker Rau Round Duct
Cw lub luj tshib ua tshuab hydraulic gorelock luj tshib tshuab ua gorelock Khoom Piav Qhia SBKJ tshuab hydraulic lub luj tshib ua tshuab yog siv los ua lub luj tshib puag ncig. 1. Cov...
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Product Introduction
Cw lub luj tshib ua tshuab hydraulic gorelock luj tshib tshuab ua gorelock
Product Description

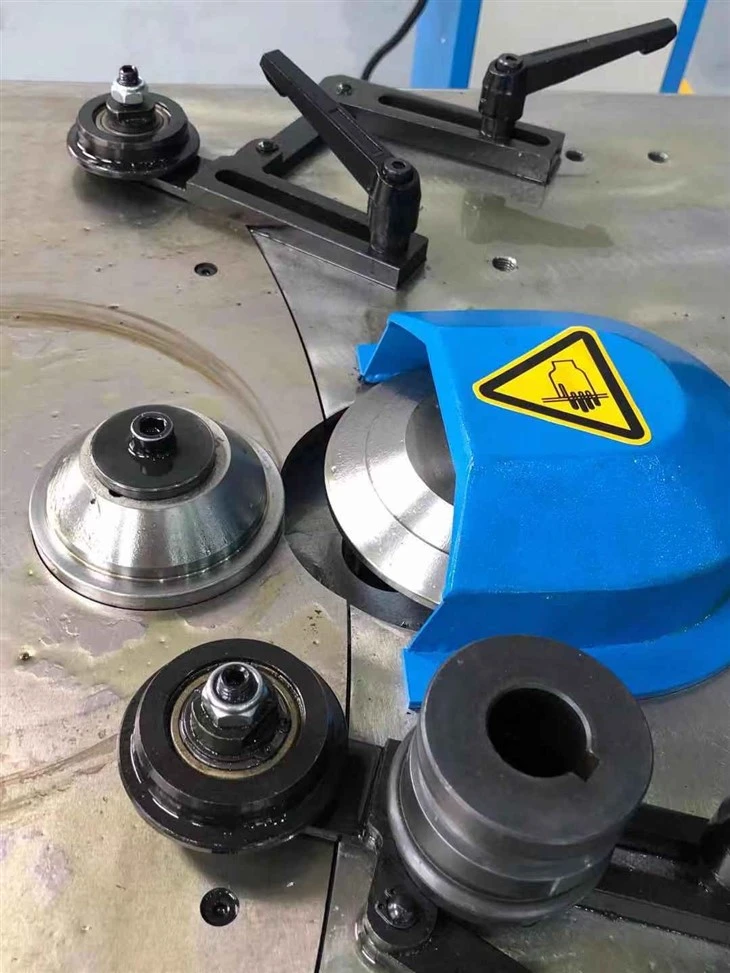

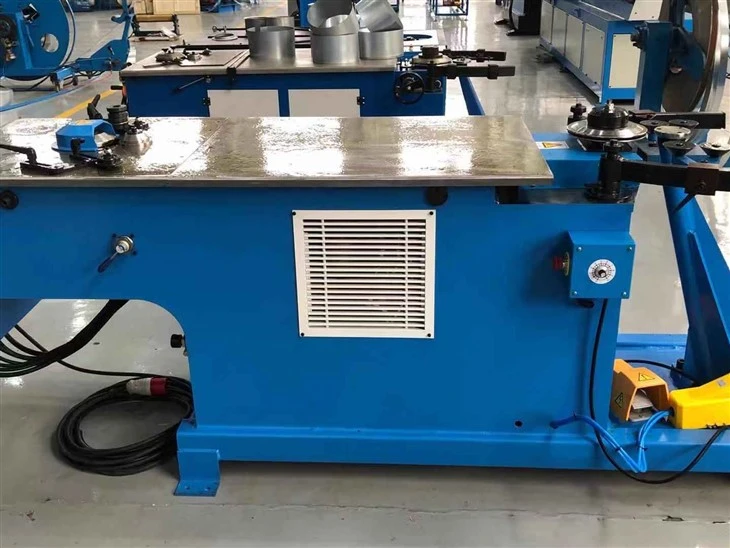

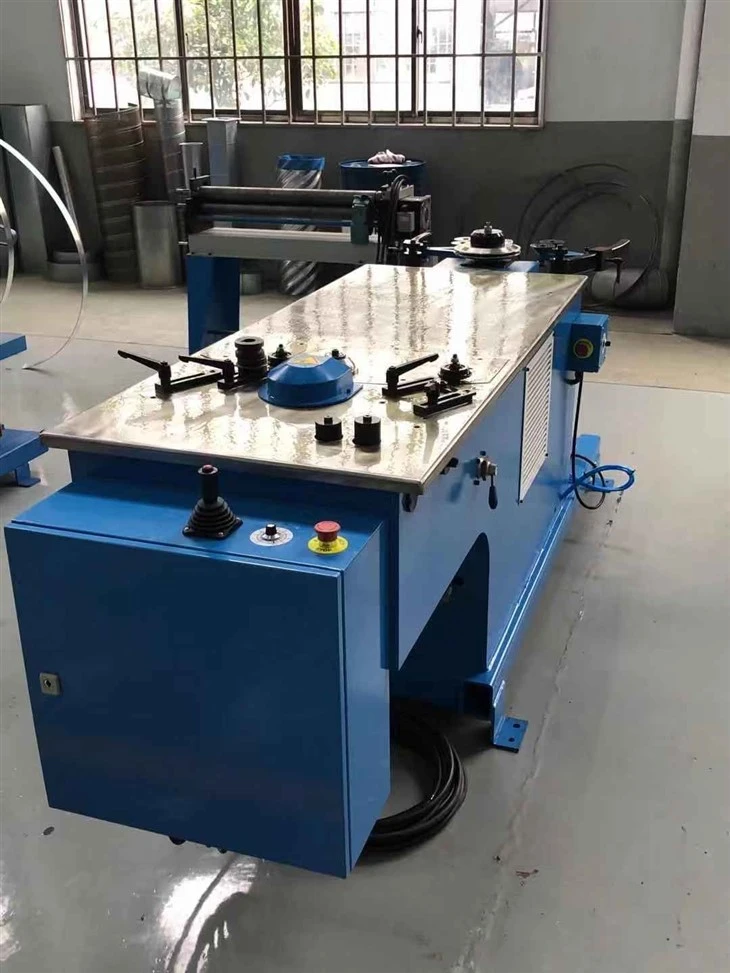

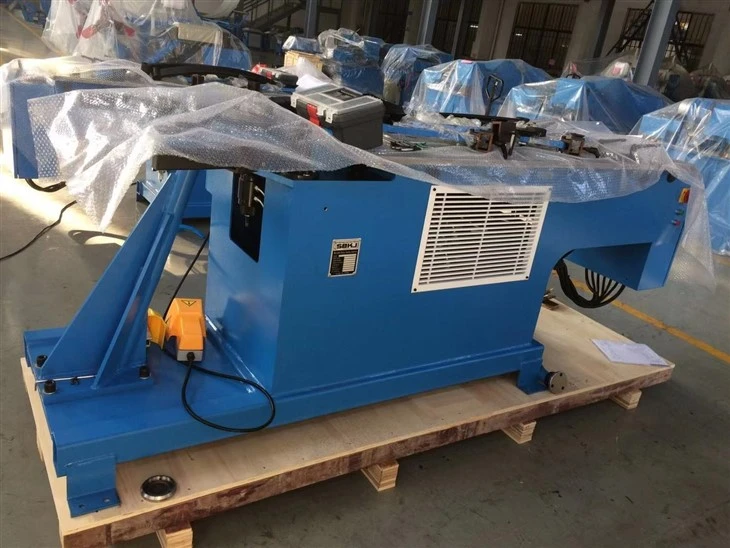

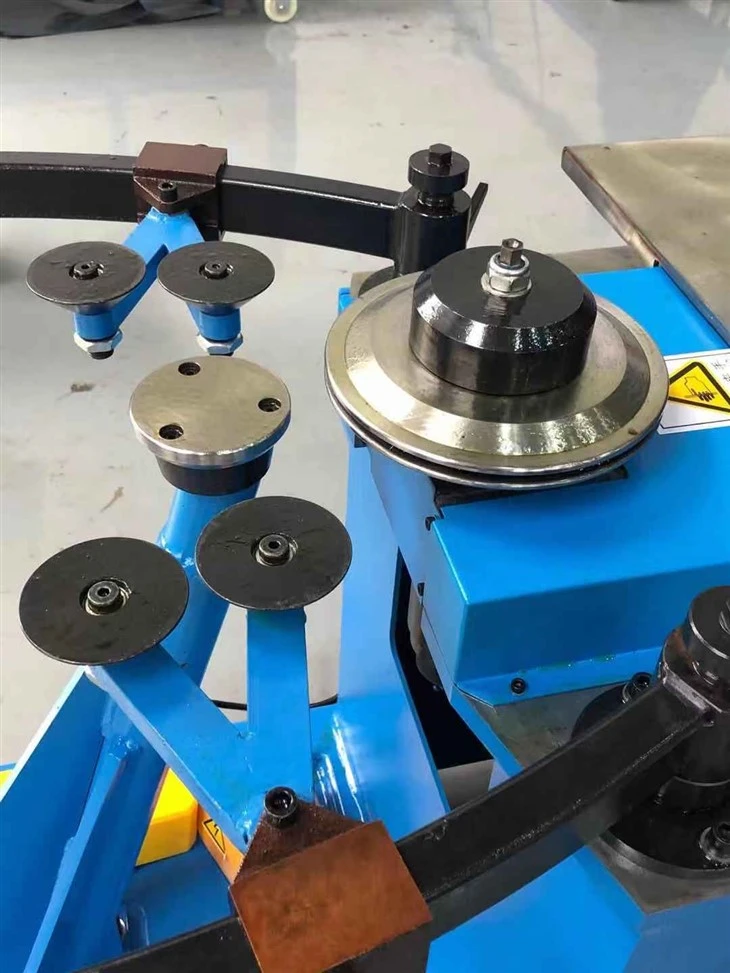

SBKJ Tshuab hydraulic lub luj tshib ua tshuab yog siv los ua lub luj tshib puag ncig.
1.Tus ncej txais tag nrho cov hlau vuam qauv nrog zoo rigidity.
2.Nws muaj ob qhov chaw nres tsheb ntawm gorelocker-lub luj tshib xauv qhov chaw nres tsheb thiab lub luj tshib seam locking chaw nres tsheb. Tag nrho ob qhov chaw nres tsheb no yog tsav los ntawm kev ywj pheej hydraulic roj tank! Qhov ntawd ua rau lub tshuab ua haujlwm tsis tu ncua, raug thiab nrawm nrawm ntawm max. 120m / min.
3.This hydraulic duct lub luj tshib ua tshuab ua haujlwm ntau yam khoom siv thiab ntsuas kom ua lub luj tshib los ntawm 5"-50" lossis 125mm-1250mm.
4.Cov ntaub ntawv nws txhawb yog dub hlau, galvanized hlau, stainless hlau, txhuas thiab lwm yam.
Technical data
|
Txoj kab uas hla |
￠100mm - ￠1250mm |
|
|
Thickness ntawm sawb |
Dub hlau |
0 4-1.2 hli |
|
Galvanized hlau |
0 4 -1.2 hli |
|
|
Stainless hlau |
0 4-0.8 hli |
|
|
Aluminium |
0 4-1.2 hli |
|
|
Dav ntawm sawb |
Standard 137 hli |
|
|
Max. sib sau ceev |
120m / min |
|
|
Hydraulic roj |
55L |
|
|
Kev siv cov cua compressed |
75L / h 6bar |
|
|
Hwj chim |
Lub zog loj |
4 KW |
|
Txias kiv cua |
120W |
|
|
Qhov hnyav |
750kg ua |
|
|
Dimension |
2700mm × 900mm × 1100mm |
|
