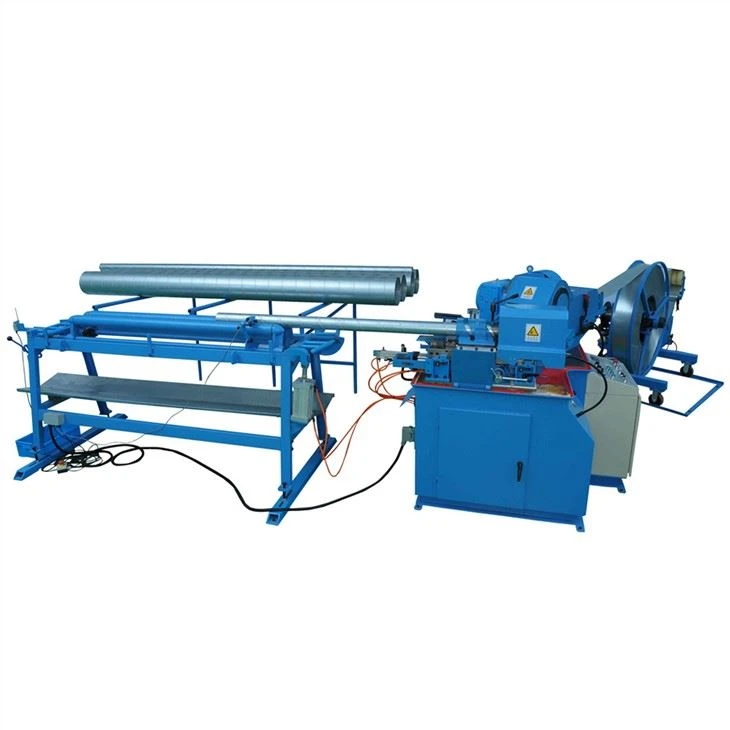

SBKJ Kauv Duct Tshuab Rau HVAC
Kev Taw Qhia Txog Kev Tshaj Tawm Modular thev naus laus zis muab cov neeg siv khoom muaj peev xwm xaiv ntawm ntau txoj kev xaiv, tso cai rau nws los tsim lub tshuab nrog ntau txoj kev xaiv, tso cai rau nws los tsim lub tshuab ua tau raws li nws cov kev xav tau tshwj xeeb. Lub zaus tswj lub ntsiab tsav kom du ...
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Product Introduction
Qhuav Taw Qhia
Kev piav qhia

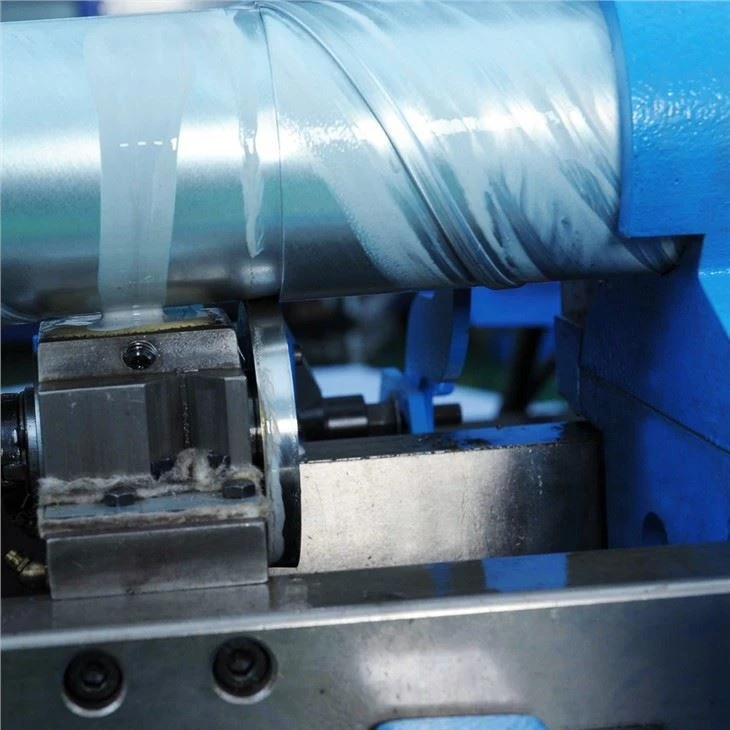

Modular thev naus laus zis muab cov neeg siv khoom muaj peev xwm xaiv ntawm ntau qhov kev xaiv, tso cai rau nws los tsim lub tshuab nrog ntau txoj kev xaiv, tso cai rau nws los tsim lub tshuab uas ua tau raws li nws cov kev xav tau tshwj xeeb. Lub zog tswj lub ntsiab tsav kom ua kom nrawm nrawm thiab ua haujlwm zoo tsis muaj suab nrov. Qhov zoo tshaj plaws patented ya slitter txiav raj kom ntev yam tsis muaj suab nrov lossis kub kub uas paub txog cov saws thiab muab cov raj du xaus yam tsis muaj kev cuam tshuam.
Tsim thiab kev xaiv kom tau raws li HVAC xav tau rau cov hlau me me, galvanized steel, stainless hlau lossis txhuas
Corrugated units tuaj yeem txo cov nqi ntawm cov khoom siv thiab ua kom cov kav dej loj dua muaj zog.
Hais txog kev pab cuam tom qab muag, peb muaj cov kws tshaj lij uas tuaj yeem qhia koj yuav ua li cas khiav lub tshuab ntawm kev yees duab, peb kuj tuaj yeem muab kev pabcuam engineers txawv teb chaws, lossis koj tuaj yeem xa koj cov neeg ua haujlwm rau peb lub Hoobkas hauv Suav teb los kawm txog kev ua haujlwm.
TechnicalData
|
Txoj kab uas hla |
￠80 mm-￠1600 hli |
|
|
Thickness ntau |
Galvanized hlau |
0 4 -1.3 hli |
|
Stainless hlau |
0 4-0.8 hli |
|
|
Aluminium |
0 4-1.3 hli |
|
|
Sawb dav |
Standard 137 hli |
{{0}} 4-1.0 mm |
|
Standard 140 hli |
1 1-1.3 hli |
|
|
Xauv seam |
Sab nraum lock seam,sab hauvxauv asthov |
|
|
Corrugations |
Ib los yog ob lub hlaws (Yeem) |
|
|
Txiav qhov system |
Lub patented yahauvslitter |
|
|
Kev xaiv |
Corrugated unit |
|
|
Qhov hnyav |
2900kg ib |
|
|
Dimension |
Lub tshuab loj |
1900 * 2050 * 1500 hli |
|
Decoiler |
1780 * 1130 * 1250mm |
|
|
Lub rooj khiav |
2700 * 950 * 1200 hli |
|
Daim ntawv thov
Cov pa cua feem ntau yog siv los txuas cov cua ncig ntawm ob qhov chaw thiab ua lub luag haujlwm ntawm qhov cua. Tam sim no, feem ntau siv nyob rau hauv kev ua lag luam yog cov kauv duct. Lub Scope ntawm daim ntawv thov ntawm kauv duct yog dav heev. Purification system rov qab cua duct, nruab nrab cua txias qhov cua duct, muaj cua tshuab thiab tso pa tawm duct, ib puag ncig tiv thaiv system suction thiab tso duct, mine drainage gas yeeb nkab, mine rubberized daim ntaub cua duct, thiab lwm yam. Kauv cua duct yog ib tug nyias-walled. cov yeeb nkab ua los ntawm cov hlau sawb coiled rau hauv ib qho kauv seam. Nws yog puag ncig, tsis muaj vuam thiab cua to. Tube). Nws yog ib hom cua duct, tag nrho cov txheej txheem, cov yeeb nkab ncaj tsis tas yuav tsum raug ntaus los ntawm tes.
Thaum xa cov khoom, Siv plywood ntoo thawv los xyuas kom meej tias cov khoom tuaj txog hauv qhov zoo.
FAQ ntawm DUCT FORMING MACHINE
Q. Qhov twg koj feem ntau muag cov tshuab raj?
A. Hais txog Air Duct Machines peb tau muag thoob plaws ntiaj teb, tshwj xeeb tshaj yog nyob rau South America, Middle East, European lag luam, thiab cov lag luam sab hnub tuaj Asia.
Q: Lub neej ntev ntawm koj lub tshuab yog dab tsi? Lub voj voog hloov tshiab technology ntev npaum li cas?
A. Peb cov tshuab feem ntau tuaj yeem siv rau ntau tshaj kaum xyoo. Txawm li cas los xij, peb pom zoo kom cov neeg siv khoom hloov kho lawv cov tshuab tsis pub dhau tsib xyoos txhawm rau txhim kho kev tsim khoom thiab cov khoom lag luam zoo tshaj plaws. Hais txog kev hloov kho thev naus laus zis, ntau yam thev naus laus zis tau dhau los ua neeg paub tab, thiab nws yuav siv sijhawm tsawg kawg ob peb xyoos rau qhov kev hloov tshiab tshwm sim.
Q: Dab tsi yog cov txheej txheem ntawm Kauv Duct Forming Tshuab hauv Suav teb thiab lub ntiaj teb?
A. SBKJ's Spiral Duct Machine yog cov khoom lag luam zoo tshaj plaws nyob rau hauv Suav teb (TOP1), thiab nws cov cuab yeej siv tau ua ntej ntawm lwm cov tuam txhab. Txawm nyob rau hauv lub ntiaj teb no, peb cov cav tov yog nyob rau saum toj kawg nkaus theem.
●Kev nplua nuj nyob hauv HVAC piping machinery (1980 txog tam sim no).
● Kev nplua nuj nyob rau hauv tsis siv neeg kauv duct txoj kev (2000 txog tam sim no).
● Kev paub hauv cov tshuab cua tsis siv neeg cov kab ntau lawm (2008 txog tam sim no).
●Muaj cov khoom muag loj tshaj plaws ntawm HVAC ducts hauv kev lag luam.
● Cov chaw tsim khoom nrog ntau yam ua tiav ntawm HVAC piping machinery hauv
Tuam Tshoj.
