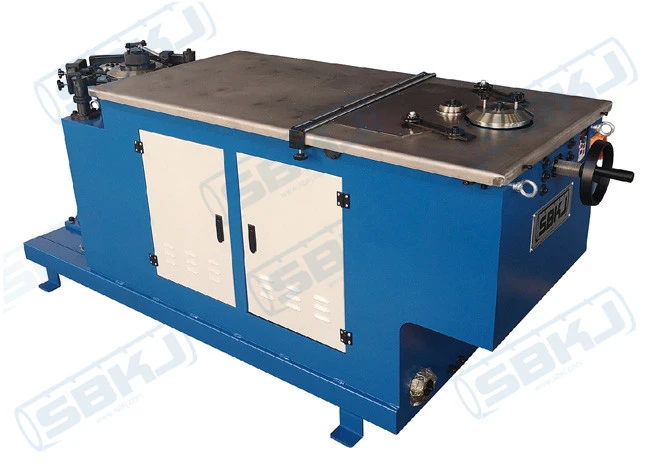

Sheet Hlau Luj Ua Tshuab

Sheet hlau luj tshib ua tshuab





Qhov zoo ntawm cov khoom:



Kab rov tav cw lub luj tshib tshuab tsim los ntawm peb lub tuam txhab, tseem hu ua lub voj voos lub luj tshib khoov (qhib) docking tom ntawm cov khoom tshwj xeeb.Pipe txoj kab uas hla ntawm 100-1500mm. Yam tsawg kawg nkaus tuaj yeem ua 100mm txoj kab uas hla, sealing zoo zoo zoo nyob rau tib lub sijhawm kuj zoo nkauj heev.

Lub tshuab muaj cov qauv tsim nyog.Qhov zoo ntawm kev ua haujlwm ruaj khov, kev ua tau zoo thiab ua haujlwm tau zoo, yooj yim rau kev khiav lag luam, yuav qhov ncaj ncaj zoo ntawm cov pob txha hom, qhov loj lub kaum ntse ntse.Tom qab occlusion ntawm duct sealing siab, muaj zog thiab ruaj khov.

Qhuav cw luj tshib khoov tshuab mas siv cua txias hvac.



1. Dual chaw ua haujlwm.

2. Max. yooj - tshem tawm cov cuab yeej hloov pauv thiab txo cov cuab yeej hloov pauv.

3. Ntau lawm ceev.

4. Flanging ceev txog li 4m ib feeb.

5. Muaj peev xwm ntau dua.

6. Khoom thickness: mus txog 1.5mm Galvanized steel &1.0mm stainless hlau.

7. Txhim kho seam zoo.

8. Optimized roller's profile.

9. Zoo tsis muaj kev saib xyuas.

10. Tsis muaj lubrication & tag nrho cov rotating qhov chaw ua los ntawm hardened, qib siab steel.

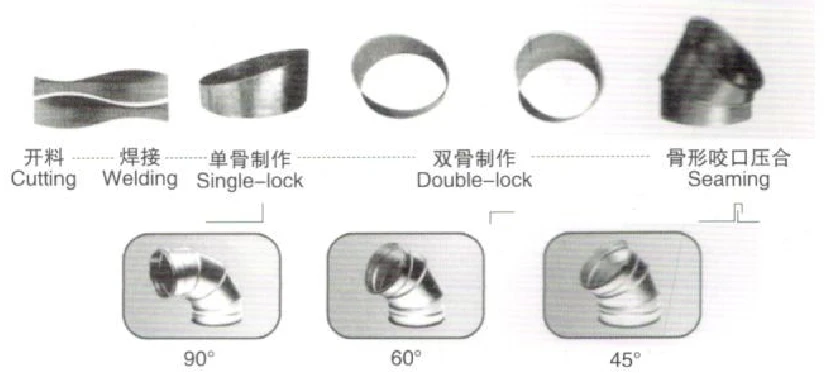

11. Chaw tsim khoom ntawm ntu khoov, reducers, kawg npog thiab offsets & txuas ntawm cams forMETU system.

12. 2 qhov chaw ua haujlwm sib cais ua tau yooj yim: qhov chaw nres tsheb flanging thiab qhov chaw kaw. tshuab yeej ib txwm npaj rau kev khiav hauj lwm yam tsis muaj sij hawm-siv hloov dua siab tshiab.



Technical Data

Hom	SBWT-1000	SBWT-1500	SBWT-1000A Kev Tswjhwm Zaus (txiv neej / poj niam)	SBWT-1500A Kev Tswjhwm Zaus (txiv neej / poj niam)	SBWT-1000D Kev tswj hwm zaus (Txiv neej / Poj niam / Seam Lock)	SBWT-1500D Kev tswj hwm zaus (Txiv neej / Poj niam / Seam Lock)
Thickness	1.2 hli	1.5 hli	GI 0 4-1.2 hli SS {{0}} 4-1.0mm	GI 0 4-1.8mm SS 0 4-1.2 hli	GI 0 4-1.2 hli SS {{0}} 4-1.0mm	GI 0 4-1.8mm SS 0 4-1.2 hli
Txoj kab uas hla	￠120-1150mm	￠120-1500mm	￠120-1000mm	￠120-1500mm	￠120-1000mm	￠120-1500mm
Ua hauj lwm ceev	35 r / min	35 r / min	75r / min	75r / min	75r / min	75r / min
Hwj chim	1.5kw x 2	2.2kw x 2	1.5kw × 2+2.2kw/1	2.2Kw × 2+4kw/1	1.5Kw × 2+2.2kw/2	2.2Kw × 2+4kw/2
Qhov hnyav	600 Kg	700 Kg	600 Kg	6 60 Kg	600 Kg	6 60 Kg
Dimension	2080 × 720 × 895mm	2450 × 720 × 895 hli	2080 × 700 × 895 hli	2450 × 700 × 895mm	2080 × 700 × 895 hli	2450 × 700 × 895mm









FAQ



1. Yuav ua li cas thiaj tau txais cov lus hais los ntawm peb?

Muab peb cov ntsiab lus ntawm cov khoom xws li hlau thickness thiab dav.





2. Tus nqi shipping ntawm Tuam Tshoj mus rau koj lub teb chaws yog dab tsi?
Peb tuaj yeem xa tshuab rau koj qhov chaw nres nkoj lossis qhov rooj qhov chaw nyob ntawm hiav txwv lossis dav hlau. Thov ua siab zoo qhia rau peb koj qhov chaw nres nkoj ze tshaj plaws los yog chaw nyob nrog postcode.Peb muaj tus neeg sawv cev shipping txhim khu kev qha kom muaj kev nyab xeeb, yooj yim thiab xa khoom raws sijhawm.





3. Cov nqe lus them nqi, MOQ, warranty, FOB.
Cov nqe lus them nqi: 30% TT them ua ntej, qhov seem ntawm 70% ua ntej xa zaub mov.
Yam tsawg kawg nkaus kom muaj nuj nqis: 1 teeb, FOB Shanghai.
Lub sij hawm xa tuaj: 7 hnub tom qab tau txais daim ntawv xaj thiab 30% tso nyiaj.
Warranty: 12 lub hlis.





4. Lub pob yog dab tsi?
Fumigation-dawb plywood rooj plaub lossis tsis muaj pob.





5. Yuav ua li cas txog kev pab cuam commissioning?
Peb tuaj yeem muab kev pabcuam commissioning, tus neeg yuav khoom yuav tsum them tus nqi caij dav hlau.





6. Dab tsi yog txoj cai rau kev lav thiab qhov tawg?
Lub sij hawm Warranty ntawm cov cuab yeej siv tau ib xyoos, thaum lub sij hawm cov khoom tawg thiab cov khoom seem los ntawm qhov zoo tuaj yeem muab pub dawb.



Peb Cov Kev Pabcuam



Presale Service: Muab khoom tsim, txheej txheem tsim. Pab koj xaiv lub tshuab haum. Tsim lub tshuab raws li koj cov khoom siv thiab cov khoom siv.

Kev Pabcuam Muag: Txais cov khoom siv ua ke nrog koj. Muab koj pab ua cov lus qhia ua haujlwm. Lwm yam kev pab uas koj xav tau.

Kev pab cuam tom qab muag: Ib xyoos lav. Kev kho dawb tag nrho siv lub neej (tsis muaj tus nqi thauj khoom thiab khoom siv).
