Nws Pib Kab III Cua Duct Ntau Lawm Kab Qhov Cuab Yeej Nws Pib Duct Hlau Sheet Ua Tshuab
Thaum lub sij hawm pub mis nrog pneumatic servo, lub manipulator pab kom muaj kev ruaj ntseg thiab ceev ntawm lub tshuab, nrog rau qhov tseeb ntawm nws qhov chaw.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Product Introduction

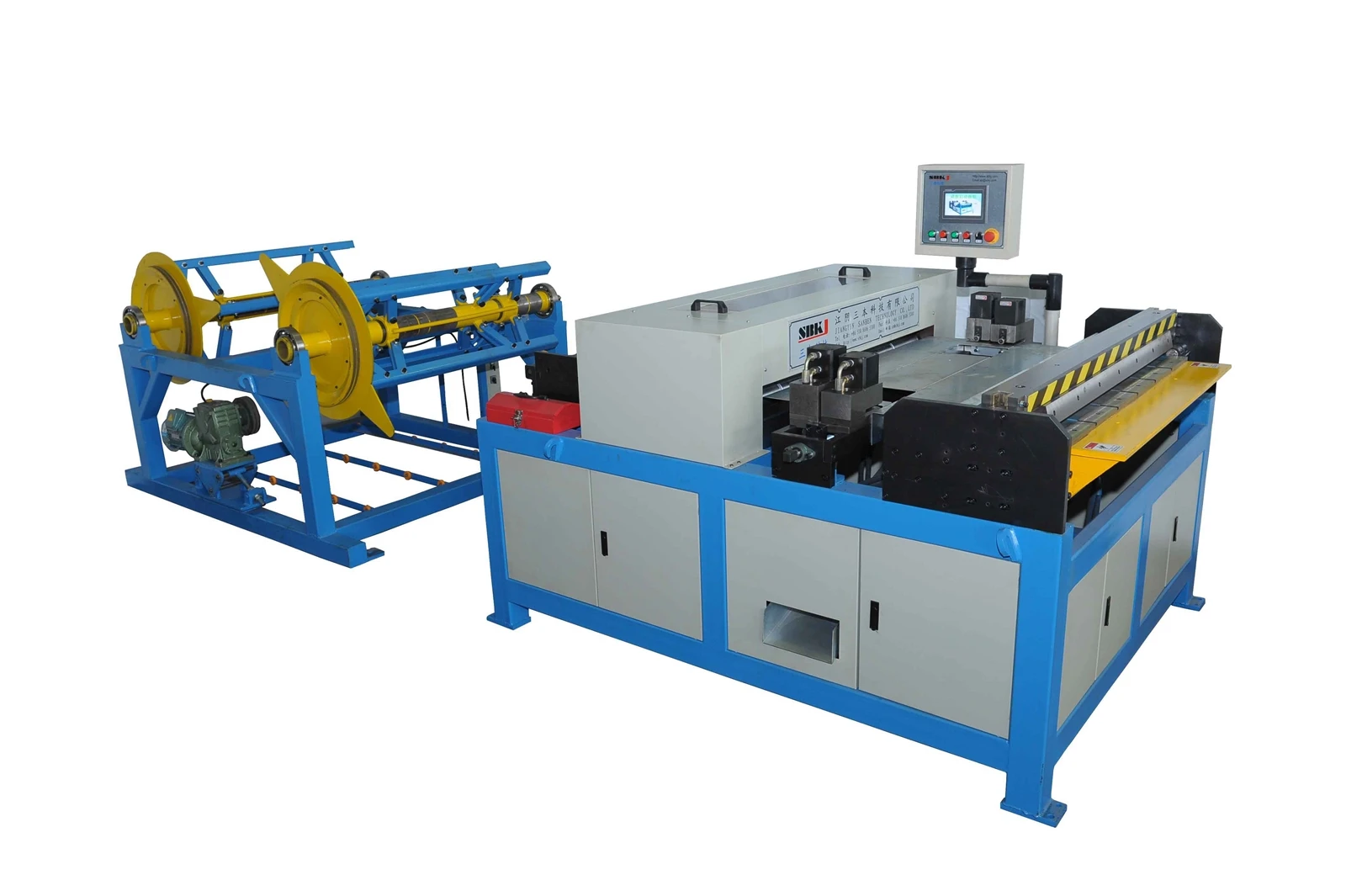

Cua duct ntau lawm kab ventilation pib duct hlau ntawv txoj kev tshuab
Nta

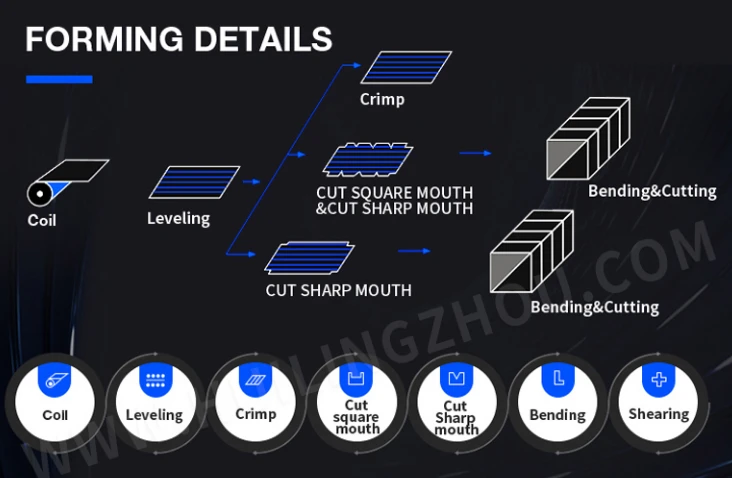

Nws pib duct kab 3 yog nruab nrog uncoiling, levelling, beading, xuas nrig ntaus, shearing thiab dabtsi yog khoov. Qhov zoo yog qhov chaw me me thiab yooj yim rau nruab thiab ua haujlwm, thiab tuaj yeem hloov kho mus rau "super kab 4". Kev ua tau zoo: · Tag nrho cov dov reels yog ua los ntawm cov kabmob steel kom lub neej ntev ntev los ntawm ntau tshaj 5 zaug. · Raws li cov khoom-txuag hom ntawm CNC system, lub tshuab tuaj yeem tshem tawm cov khoom siv tom qab ua tiav cov haujlwm. · Nrog kev ua haujlwm nco, kev txiav txim ntau lawm tuaj yeem taug qab thiab tshawb xyuas Main Import Configuration: · Delta HMI Zaub Thiab PLC · Delta zaus Converter · Nyiv NEMICON Inverter · Taiwan Hydromax Twj · Taiwan High Temperature Resistant Tubing
Basic Configuration

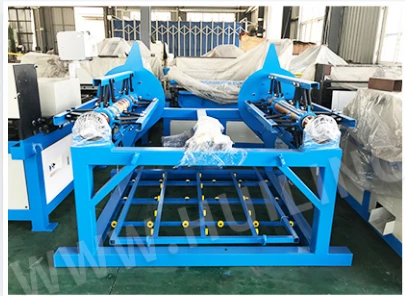

Ib qho hluav taws xob coil cradles, 2 cov khoom siv (8t txhua yob) · Ib lub rack · Ib tus tswv tsev (line2 party) · Ib qho khoom siv caj npab clutching, nrhiav thiab hloov lub platform · Ib qho kev hloov pauv hom kaw lub tshuab · Ib txheej ntawm lub computer tswj system
Duab Paub meej

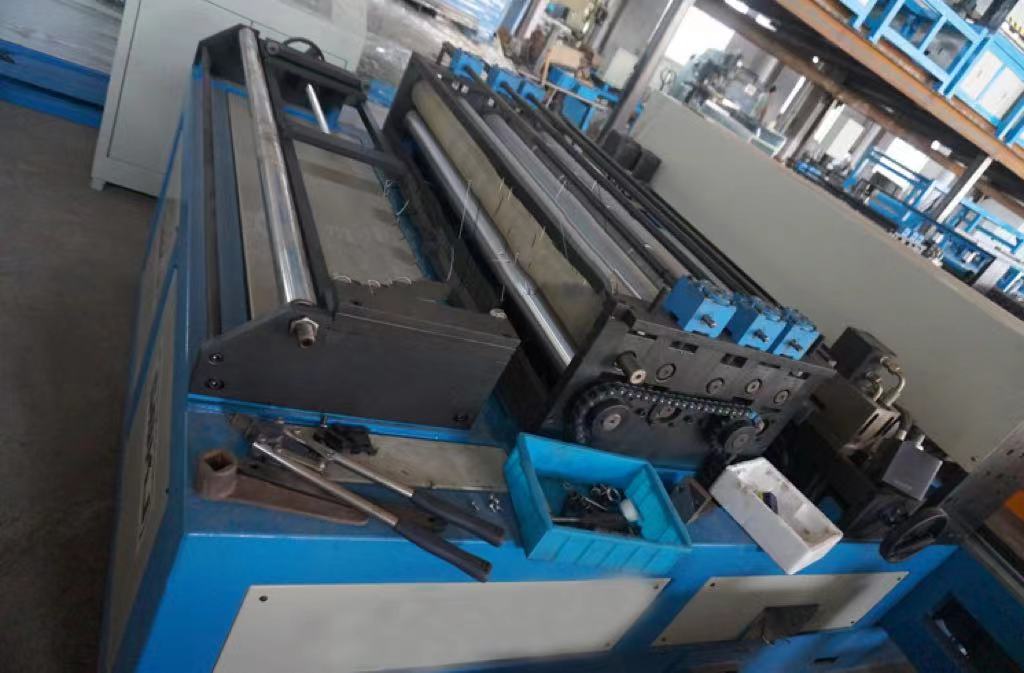

Lub theem thiab grooving ib feem rau HVAC Nws pib kab III Cua duct ntau lawm kab qhov cua nws pib duct hlau ntawv txoj kev tshuab

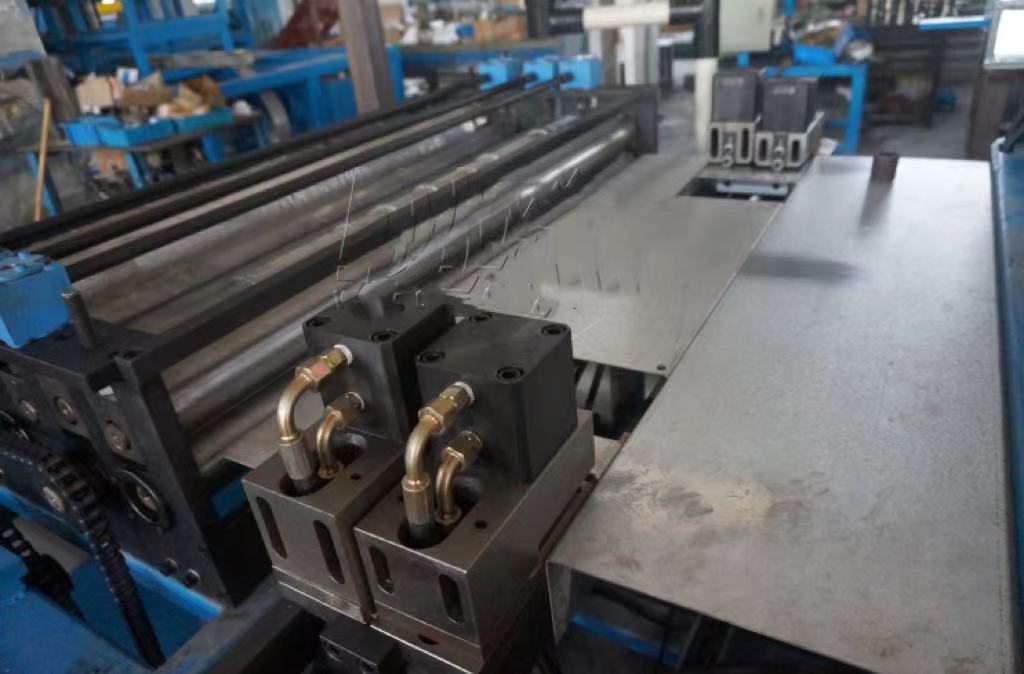

Qhov tseeb notching ib feem rau HVAC Nws pib kab III Cua duct ntau lawm kab ventilation pib duct hlau ntawv txoj kev tshuab

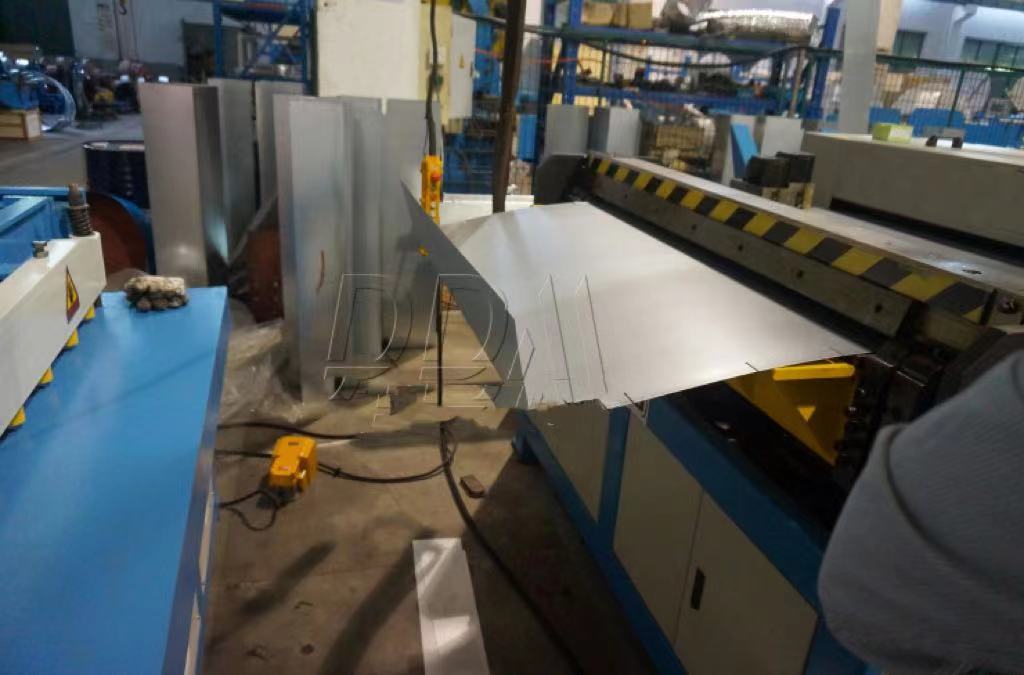

Qhov kawg khoov ib feem rau square duct dabtsi yog khoov thiab sib sau

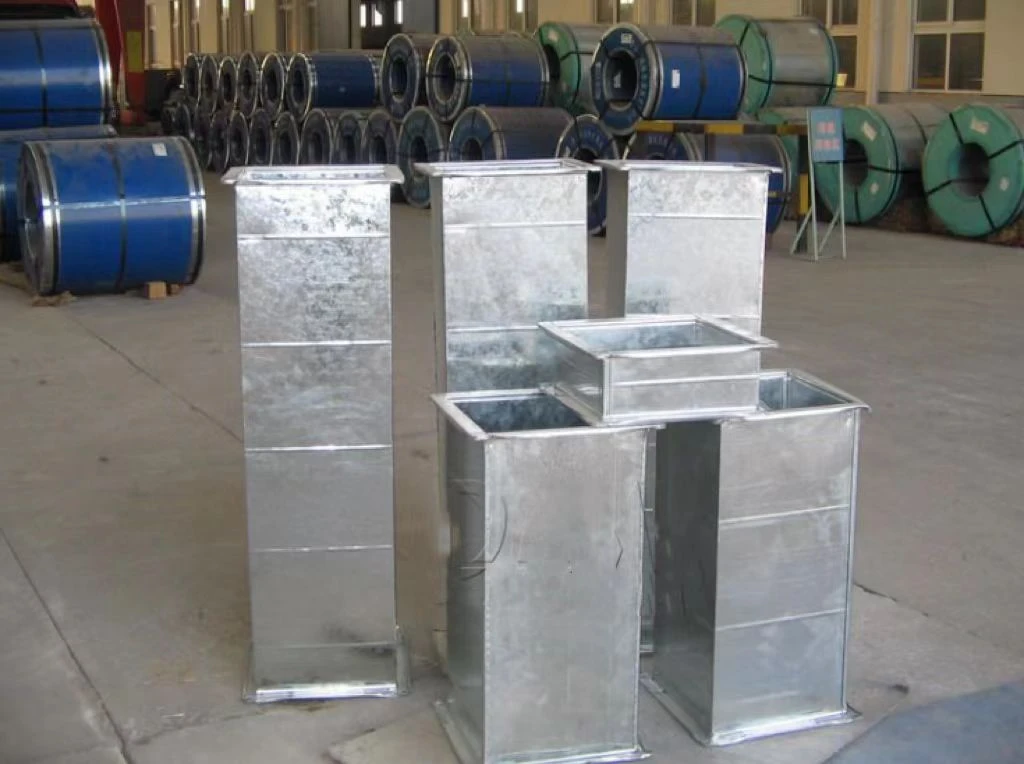

Lub pefect squre duct ua los ntawm
Packing & Delivery

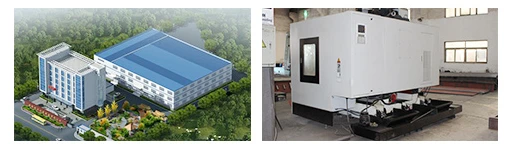

Hais txog peb
SBKJ yog ib qho ntawm Top 1 HVAC tshuab nyob rau hauv Suav teb, uas tshwj xeeb hauv kev tsim thiab kev lag luam ntawm cov xovxwm nres, shearing tshuab, xovxwm tshuab, square duct ntau lawm kab LINE5,4,3,2,1; kauv duct tshuab, locking forming tshuab; folding tshuab, ntshav txiav tshuab, fais fab xovxwm, hlau neeg ua haujlwm, hydraulic notching tshuab, beading tshuab, flange txoj kev tshuab, shearing tshuab & xovxwm nres, Hniav / Pwm, thiab lwm yam.
|
Technical Data |
||
|
Qauv |
SBAL-III -1250 |
SBAL-III -1550 |
|
Thickness (hli) |
0.5-1.2 |
0.5-1.2 |
|
Max dav (tus qauv) (mm) |
1250 |
1550 |
|
Max ua haujlwm ceev (m / min) |
18 |
18 |
|
Coiler Max hnyav (KG) |
8000 |
8000 |
|
Lub zog (KW) |
9.5 |
9.5 |
|
Qhov hnyav |
3250 |
3250 |
|
Dimension |
2300*1800*1400 |
2300*2100*1400 |
