Cua Duct Flange Forming Tshuab





Feature

Txoj kab uas hla: 80-2500mm

Thickness: 0 4-2 hli

Pub ceev: max 0-60m/min (raws li cov khoom siv ).

Lub flanging thiab seaming yog qhov nruj tshaj plaws puas tau pom ntawm kev ua lag luam los ntawm cov koom haum tshawb fawb ywj pheej.

Txhua qhov tseem ceeb yog ua los ntawm cov hlau zoo.

Cov qauv yob tshwj xeeb ntawm tus tsav cov menyuam ua kom lub zog zoo.

Lub kaum ntse ntse tshwj xeeb optimize shear.

Qhov tshwj xeeb inlaid tooj liab daim ntawm lub taub hau molding minimizes kev sib txhuam thiab ua rau nws ruaj dua.

Lub precision ua hauj lwm sib txawv ntawm txoj kev yob sib dhos optimizes ntug seam.

Cov hniav siv cov hlau zoo nrog lub neej ua haujlwm ntev.

Qhov tshwj xeeb clamping cov menyuam ua rau ntug seam ruaj.

Nrog kev ua haujlwm siab, kev xa khoom ceev ntawm txoj siv tuaj yeem ncav cuag li 80m / min.

Compact qauv thiab nyob ib cheeb tsam me me.

Lub tshuab tsim lub txaj thiab lub hauv paus phaj yog ua los ntawm cov hlau txuas nrog zoo stability thiab tsis muaj deformation.

Txais ntau yam khoom siv tiv thaiv nrog kev nyab xeeb zoo.

Lub tshuab decoiling nrog cov khoom siv tshwj xeeb tensioning, txhim kho qhov tseeb thiab cov khoom zoo.

Hydraulic system, ruaj khov, tsis muaj suab nrov, yooj yim txij nkawm.

Lub tshuab hydraulic muaj kev nyab xeeb, txhim khu kev qha thiab yooj yim kho.

Multi-kauj ruam programming, cia li programming.

Nws muaj lub zog tawm kev tiv thaiv ua haujlwm kom ntseeg tau tias qhov ntsuas tsis ploj.



Cov duab ntxaws

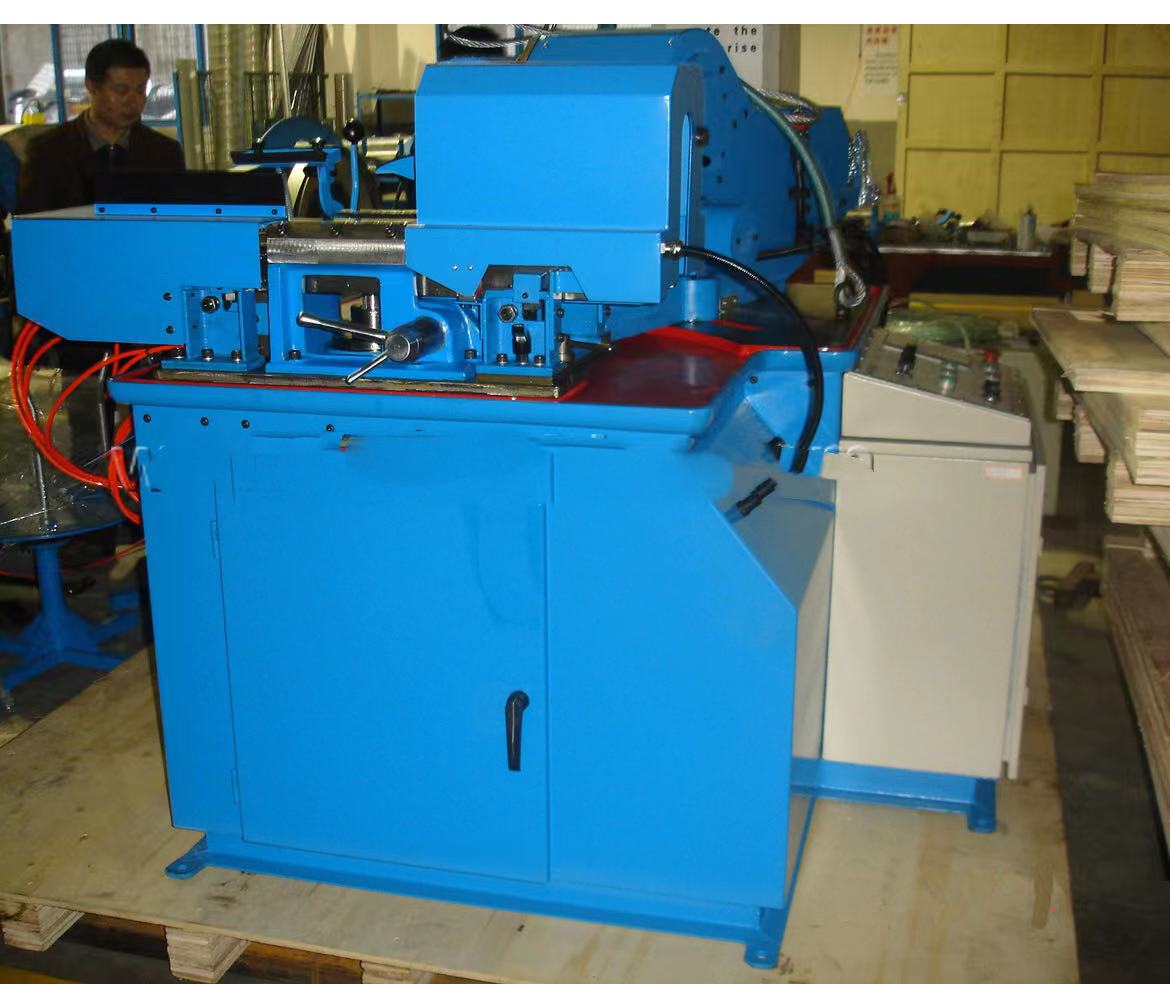

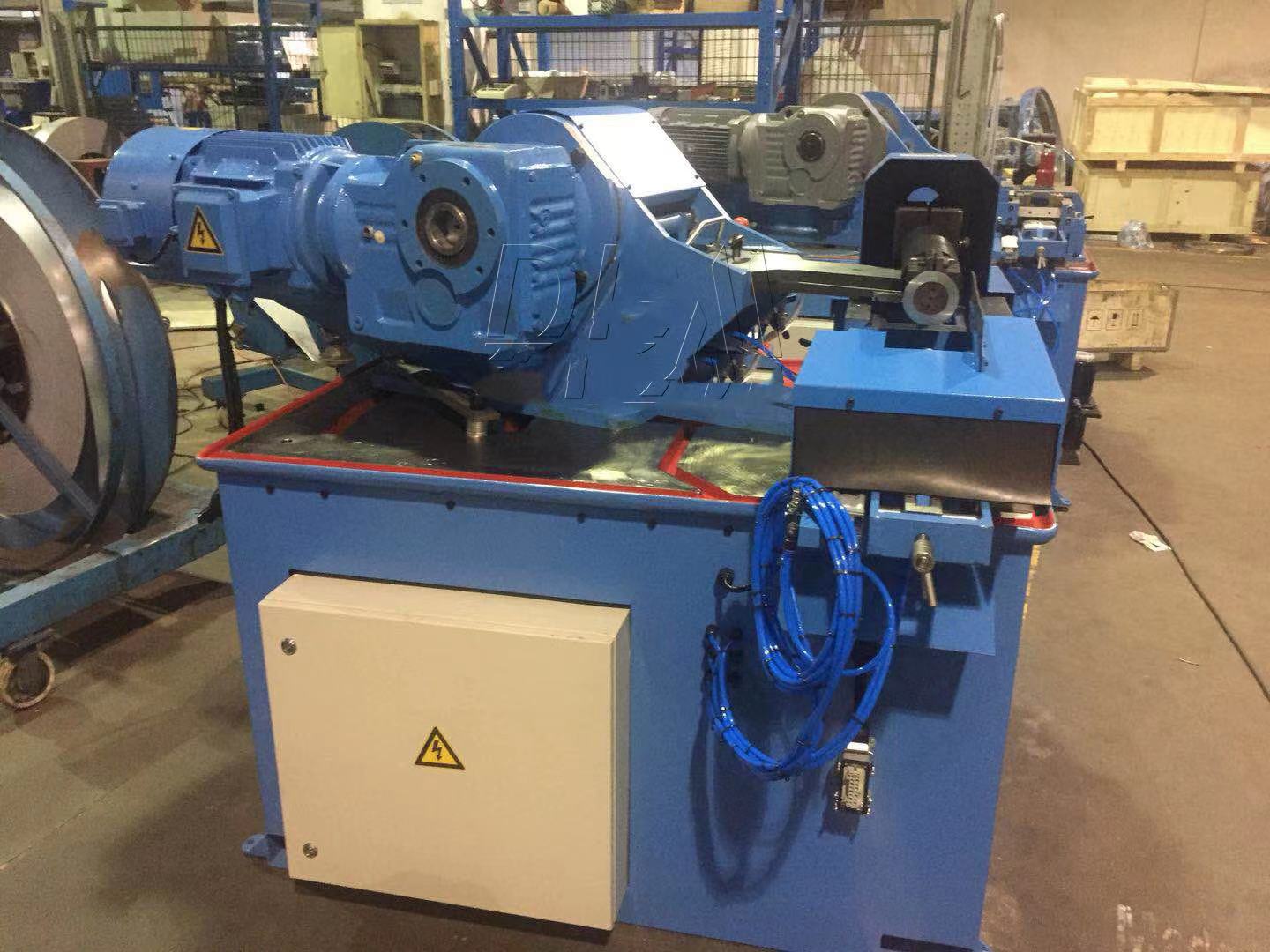

Lub hauv ntej saib ntawm lub ntsiab tshuab lub cev ntawm SBTF-2020 Cua Duct Flange Forming Tshuab

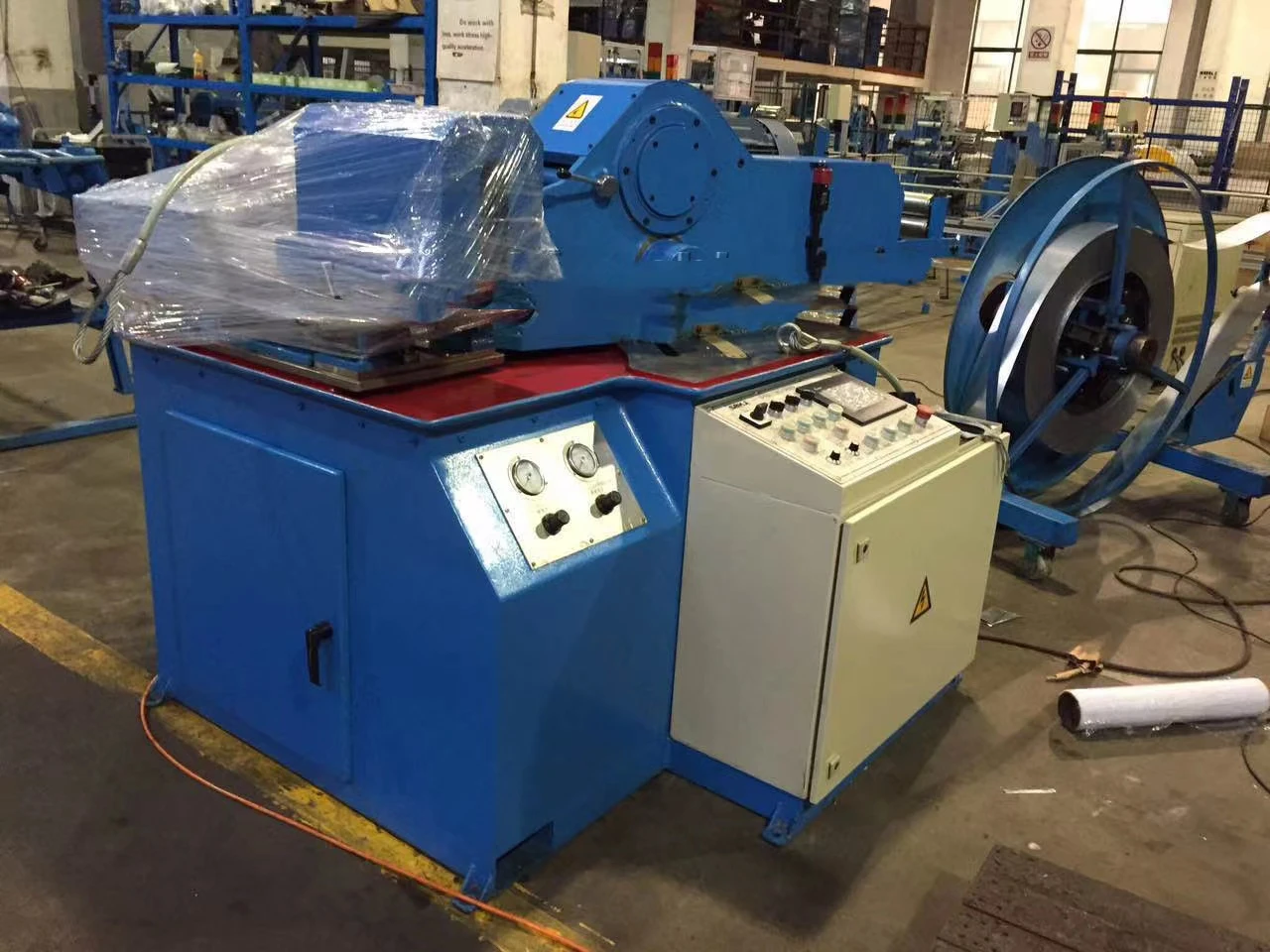

Rov qab saib ntawm lub ntsiab tshuab lub cev ntawm SBTF-2020 Cua Duct Flange Forming Tshuab

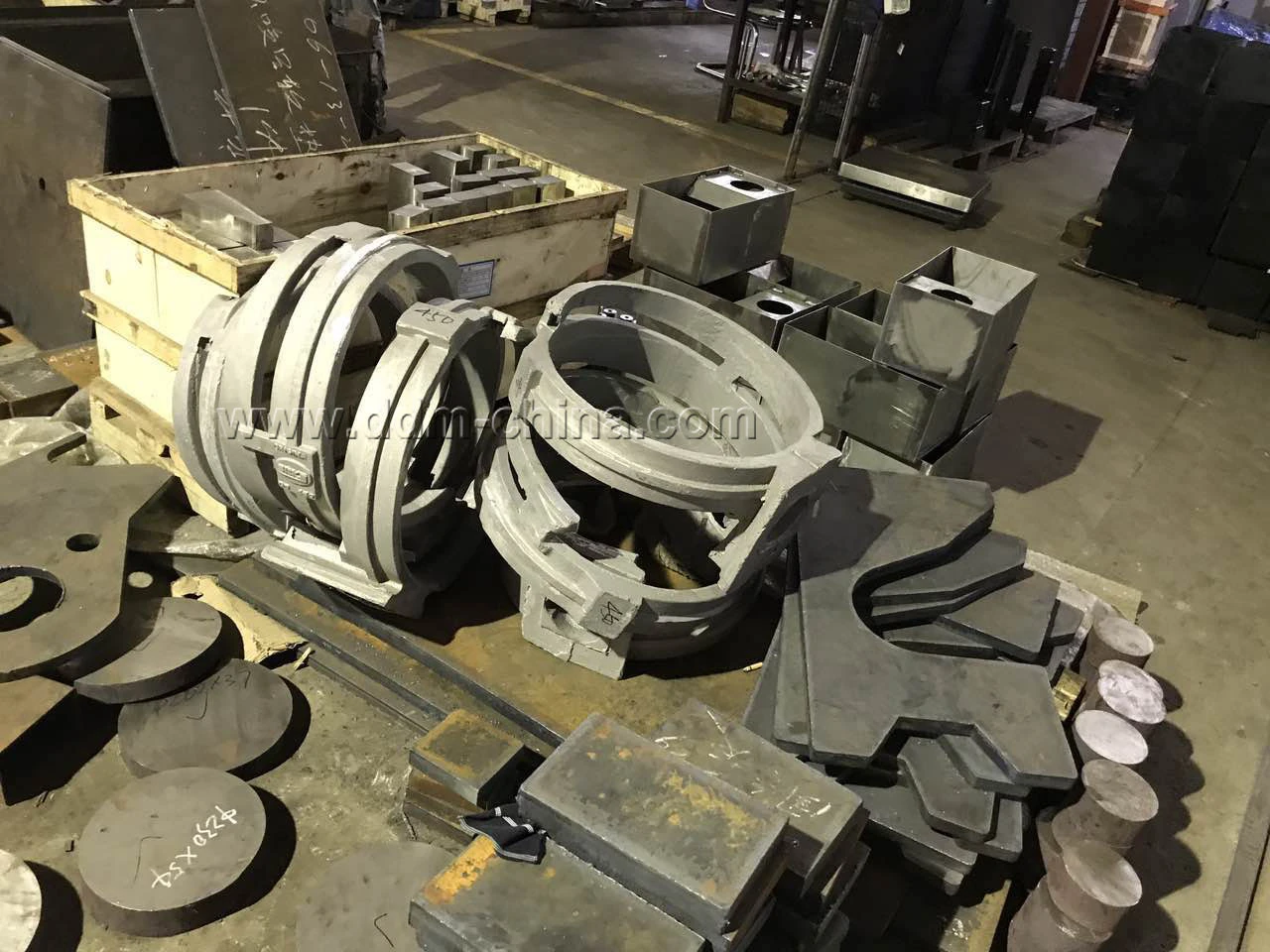

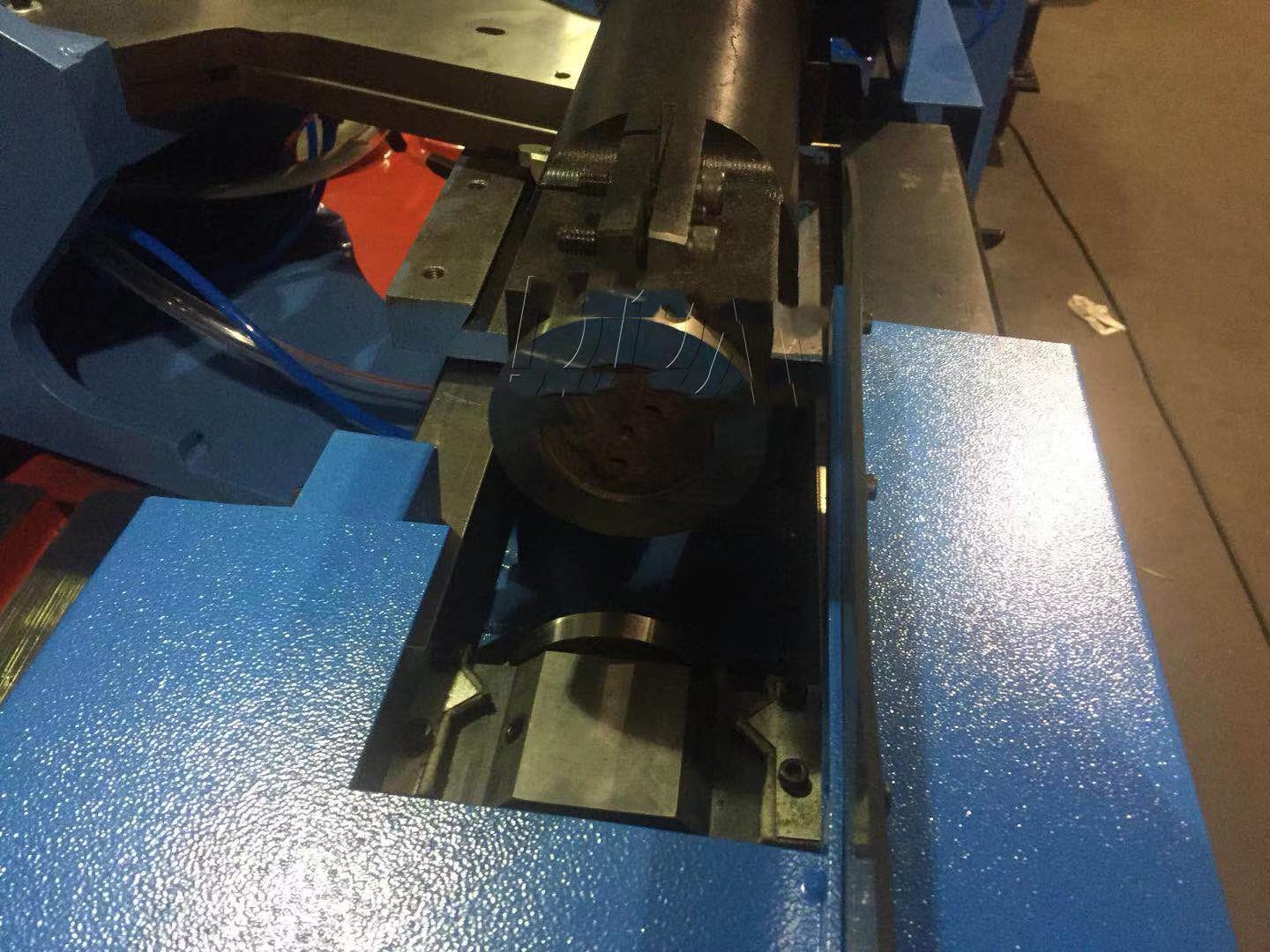

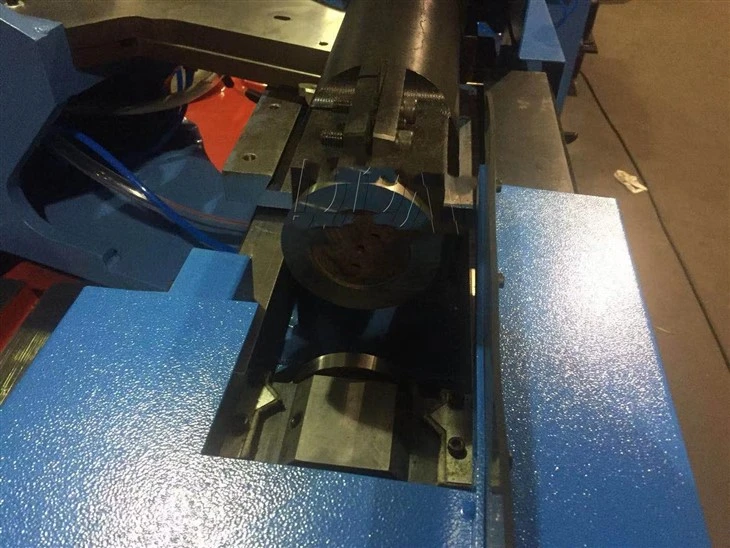

Cov ncauj lus kom ntxaws ua ib feem ntawm SBTF-2020 Air Duct Flange Forming Machine

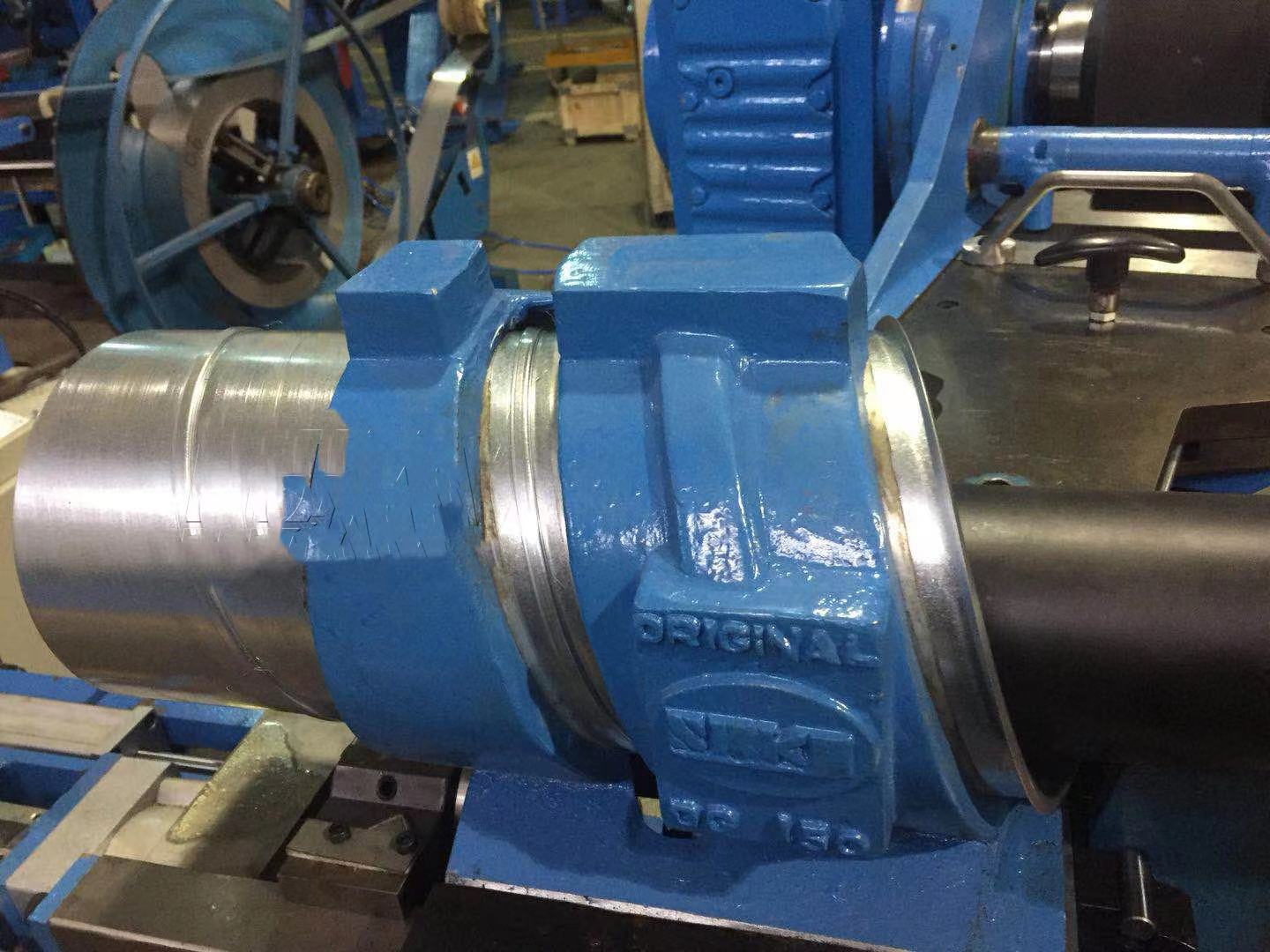

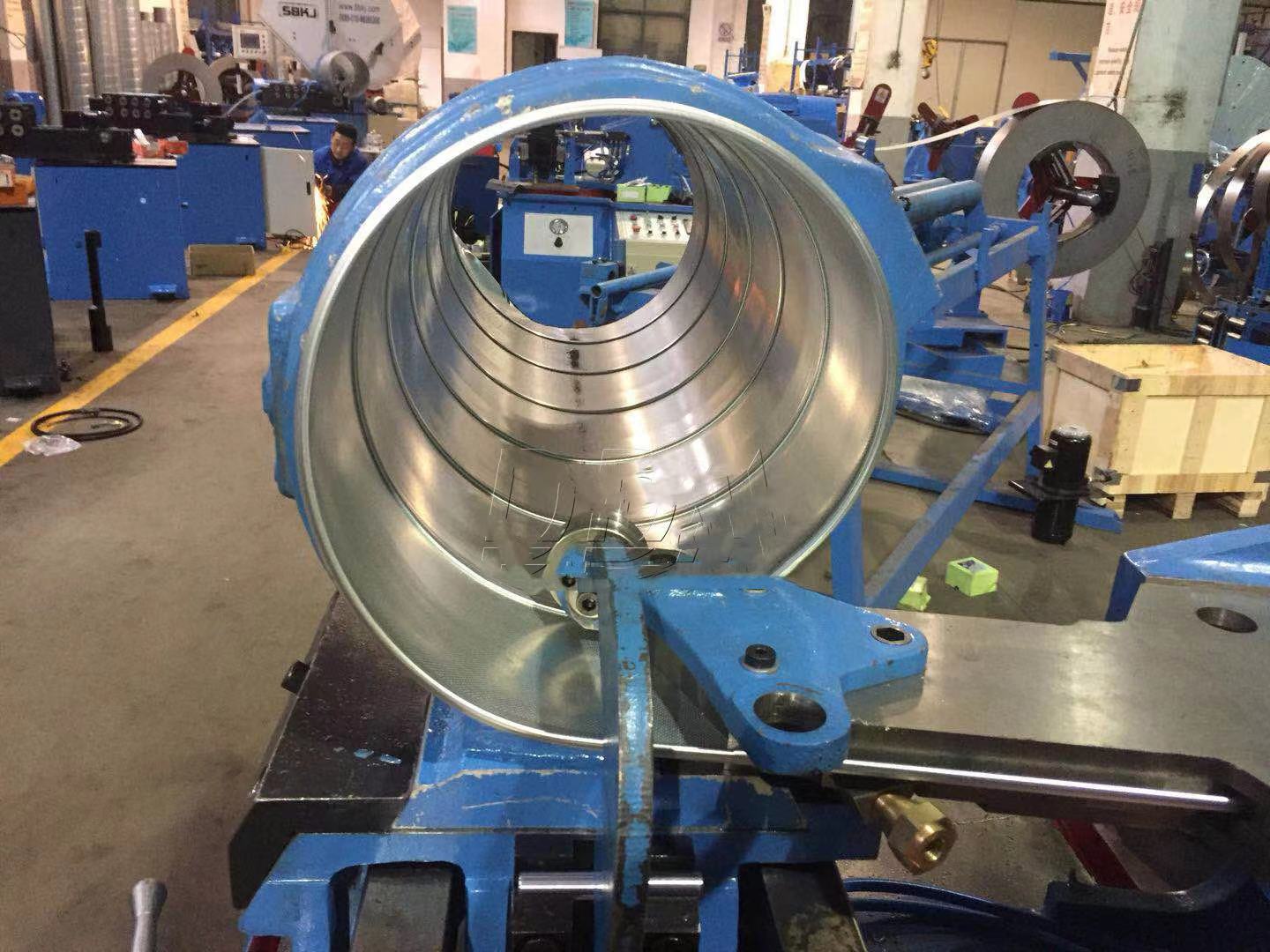

Alu forming taub hau rau puag ncig yeeb nkab ua los ntawm SBTF -2020 Cua Duct Flange Forming Tshuab

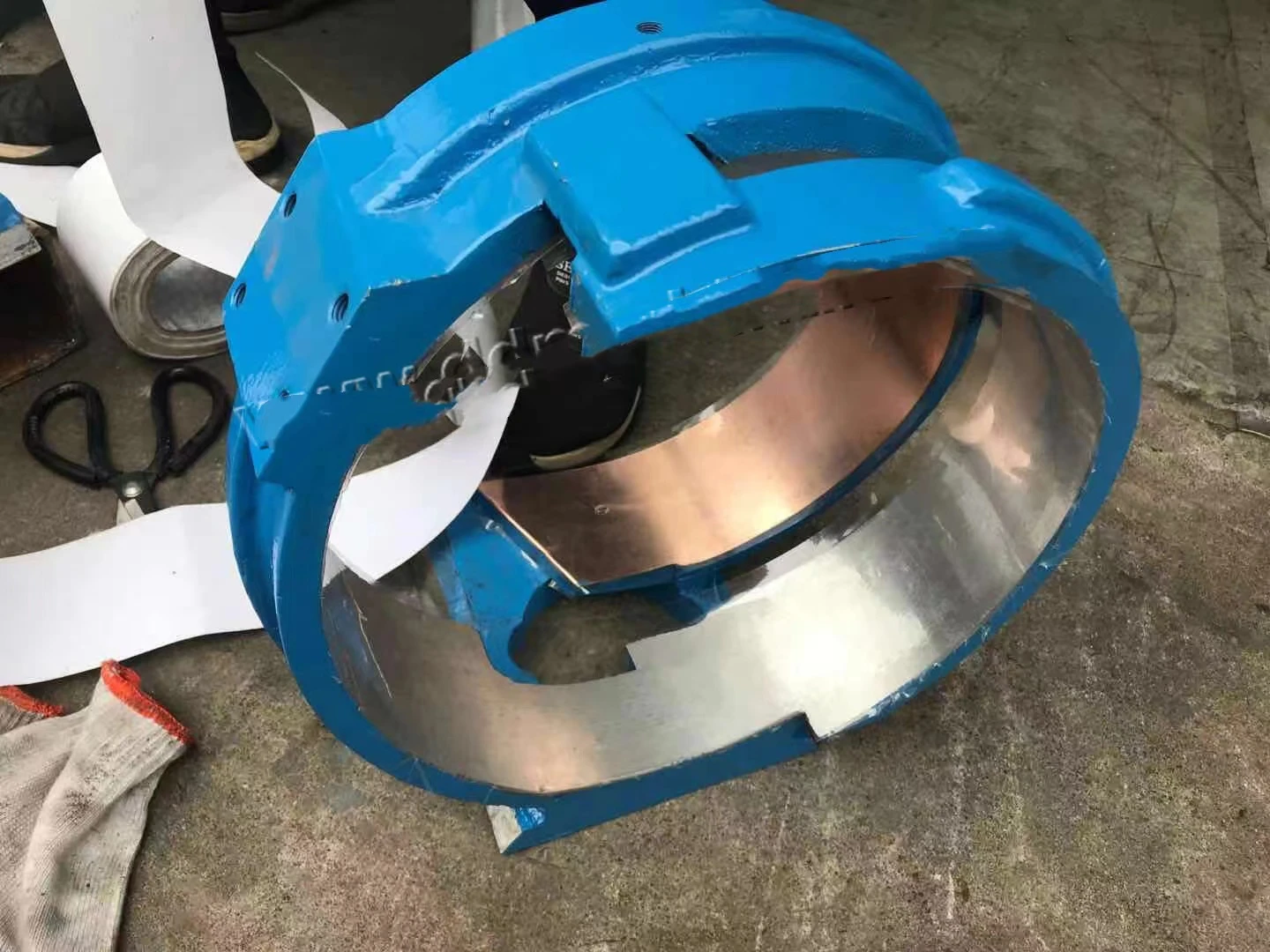

Customized alu forming taub hau rau SBTF-2020 Air Duct Flange Forming Machine

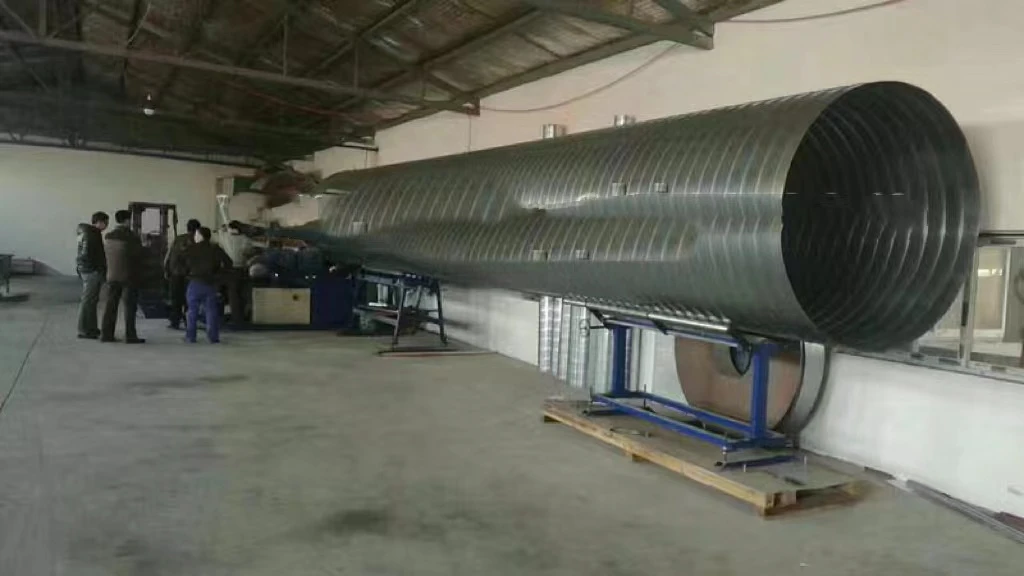

Round duct nrog 2000mm txoj kab uas hla

Khoom export ntoo pob rau peb SBTF - 2020 kauv tubeformer

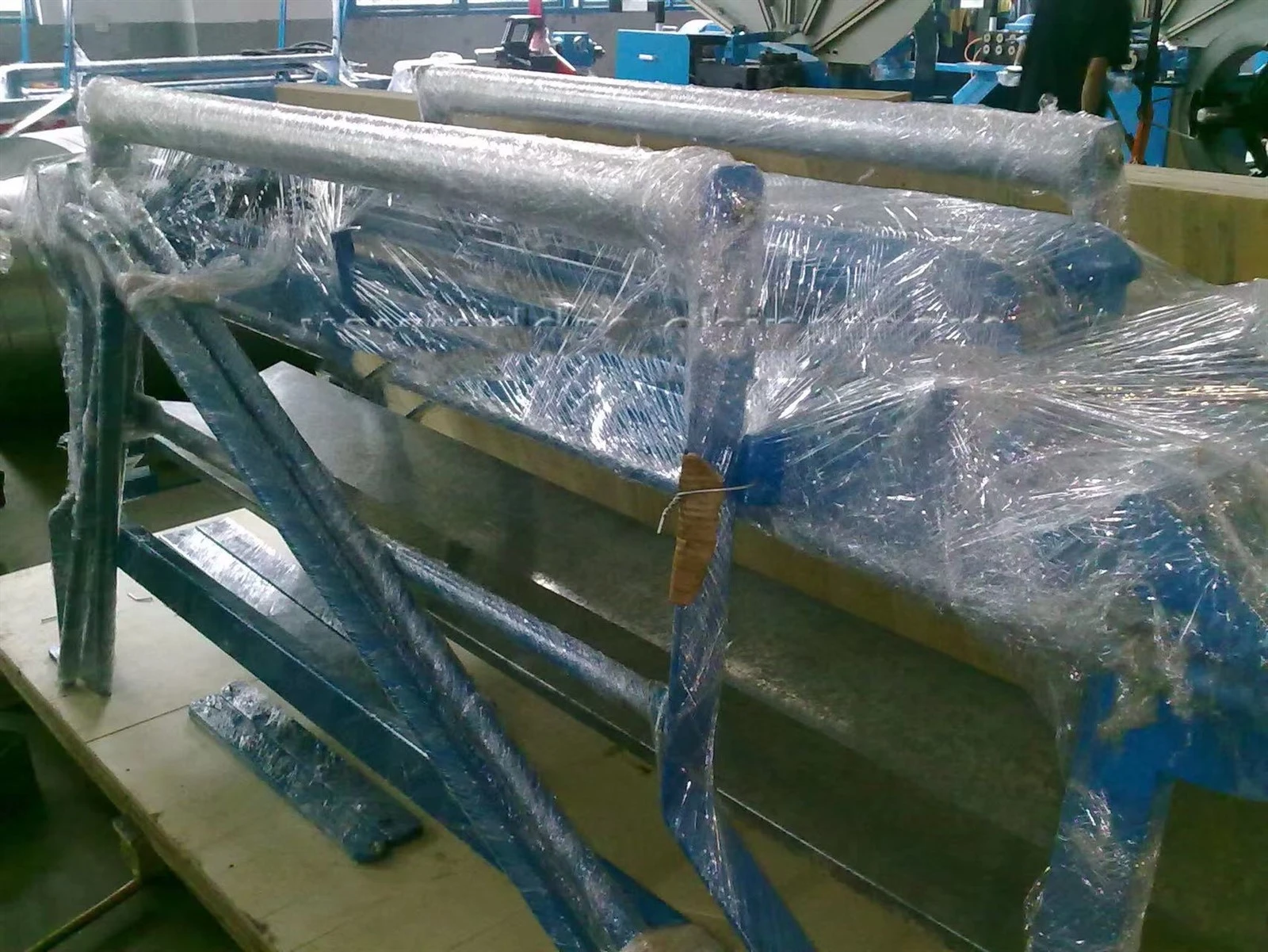

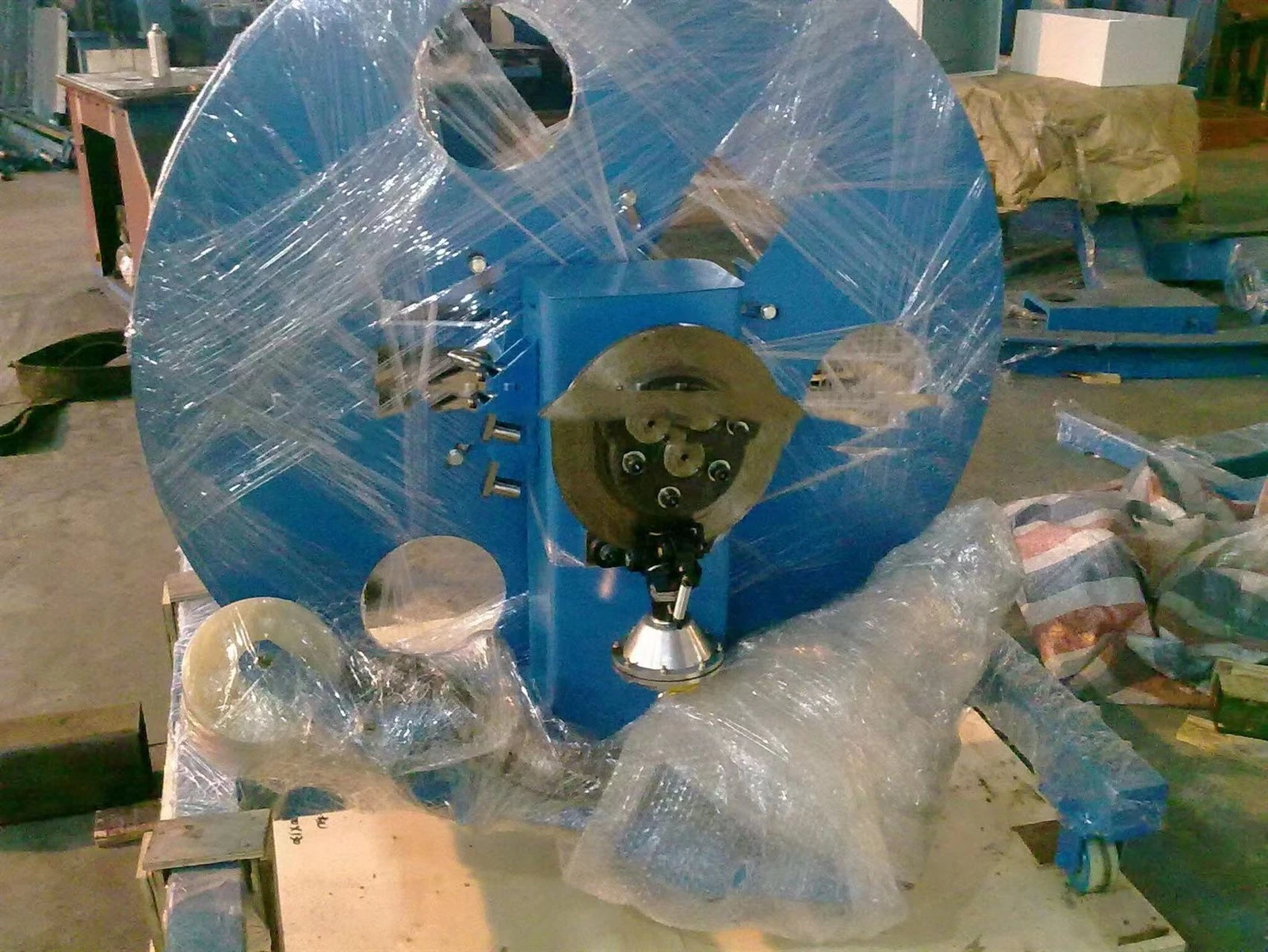

Ntim duab rau decoiler Ntim duab rau khiav tawm rooj



Packing & Delivery





Cov neeg siv khoom duab



SBKJ cov neeg siv khoom yog los ntawm thoob plaws lub ntiaj teb xws li Egypt, Canada, Belgium, USA, Israel, Argentina, Denmark, Nyab Laj, Indonesia, Malaysia thiab lwm yam. Peb zoo siab tos txais koj tuaj thiab koom tes nrog koj.







Technical Data

Txoj kab uas hla	80 ~ 2500 hli
Thickness ntawm sawb	Galvanized hlau	{0}}4-2.0mm
	Stainless hlau	0 4-1.2 hli
	Aluminium	{0}}4-2.0mm
Dav ntawm sawb	Standard 137 hli	{{0}} 4-1.0 mm
	Standard 140 hli	1 1-1.3 hli
	Standard 150 hli	1. 4-2 0 mm
Txiav qhov system	Slitting cutter / Plasma cutter
Hwj chim	22 kwv
Qhov hnyav	3 200kg
Dimension	Lub tshuab loj	2100 × 1800 × 1500 hli
	Decoiler	1780 * 1130 * 1250mm
	Lub rooj khiav	2700 * 950 * 1200 hli
