Round Duct Flange Forming Tshuab HVAC cua txias duct



Kev piav qhia



Round duct flange txoj kev tshuab yog rau kev ua haujlwm zoo thiab muaj peev xwm ntau lawm ntawm HVAC kauv thiab round duct fabrication.

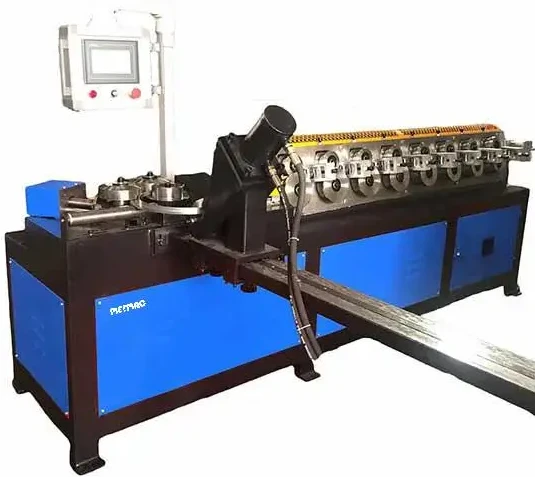

Round duct flange txoj kev tshuab ua ke nrog coil strip uncoiler, txoj cai kaum yob qub, peb ntsug cov menyuam ntu bender, hydraulic cutter, hydraulic chaw ua haujlwm thiab electrionc tswj system.

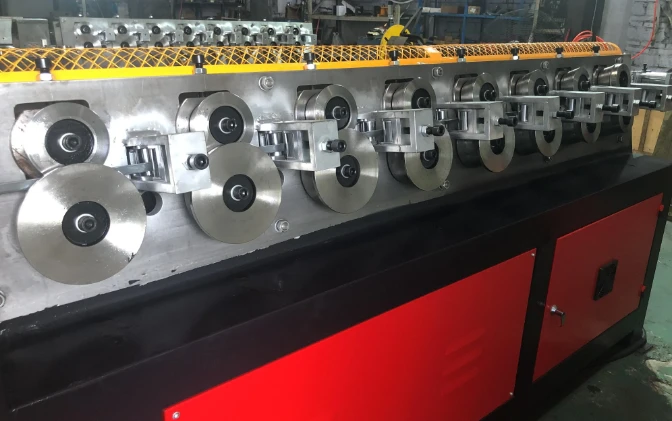

Uncoiler pab lub uncoiling ntawm coil cov khoom siv rau kev pub rau hauv cov yob qub rau txias yob txoj kev ua lub sawb mus rau txoj cai kaum profile, yim noj ntawm yob txoj kev ntaus ntawv ua kom lub kaum sab xis profile tsim preciously.

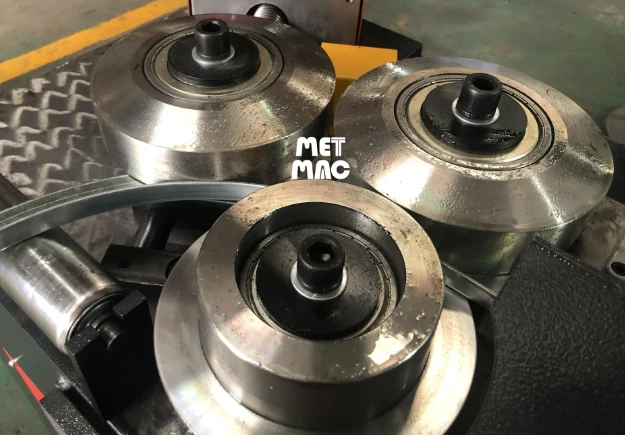

Peb ntsug rolls rau seem dabtsi yog khoov lub kaum sab xis profile rau ncig los yog puag ncig flange, txawv txoj kab uas hla ntawm ncig flange tuaj yeem tsim los ntawm kev kho txoj haujlwm ntawm yob.

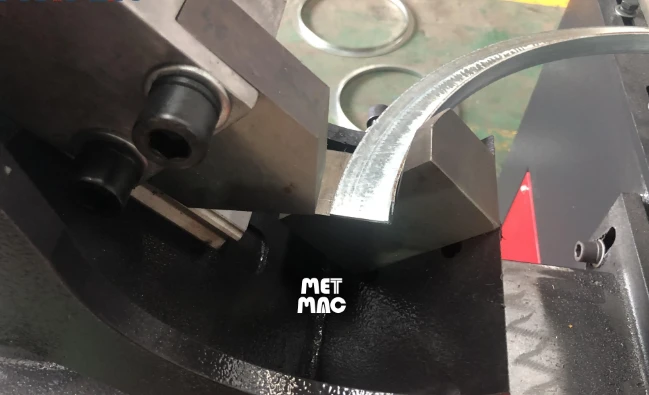

Hydraulic cutter txiav tawm lub flange tsim tau los ua kom tiav tag nrho cov kev ua haujlwm ib ntus.



Duab Paub meej





Packing & Delivery





FAQ



1. Yuav ua li cas thiaj tau txais cov lus hais los ntawm peb?

Muab peb cov ntsiab lus ntawm cov khoom xws li hlau thickness thiab dav.



2. Tus nqi shipping ntawm Tuam Tshoj mus rau koj lub teb chaws yog dab tsi?
Peb tuaj yeem xa tshuab rau koj qhov chaw nres nkoj lossis qhov rooj qhov chaw nyob ntawm hiav txwv lossis dav hlau. Thov ua siab zoo qhia rau peb koj qhov chaw nres nkoj ze tshaj plaws los yog chaw nyob nrog postcode.Peb muaj tus neeg sawv cev shipping txhim khu kev qha kom muaj kev nyab xeeb, yooj yim thiab xa khoom raws sijhawm.



3. Cov nqe lus them nqi, MOQ, warranty, FOB.
Cov nqe lus them nqi: 30% TT them ua ntej, qhov seem ntawm 70% ua ntej xa zaub mov.
Yam tsawg kawg nkaus kom muaj nuj nqis: 1 teeb, FOB Shanghai, CHINA lossis CIF chaw nres nkoj.
Lub sij hawm xa tuaj: 7 hnub tom qab tau txais daim ntawv xaj thiab 30% tso nyiaj.
Warranty: 12 lub hlis.



4. Lub pob yog dab tsi?
Fumigation-dawb plywood rooj plaub lossis tsis muaj pob.



5. Yuav ua li cas rau commissioning kev pab cuam?
Peb tuaj yeem muab kev pabcuam commissioning, tus neeg yuav khoom yuav tsum tau them daim pib dav hlau.



6. Dab tsi yog txoj cai rau kev lav thiab qhov tawg?
Lub sij hawm Warranty ntawm cov cuab yeej siv tau ib xyoos, thaum lub sij hawm cov khoom tawg thiab cov khoom seem los ntawm qhov zoo tuaj yeem muab pub dawb.

Technical Data

Thickness	2-5 hli
Min. txoj kab uas hla	￠ 200 mm
Lub kaum ntse hlau specification	20 * 20, 20 * 30, 20 * 40, 20 * 50, 30 * 30, 30 * 40, 30 * 50mm
Dimension	Lub tshuab loj 4600 * 1500 * 1750mm Decoiler 900 * 900 * 1300mm
