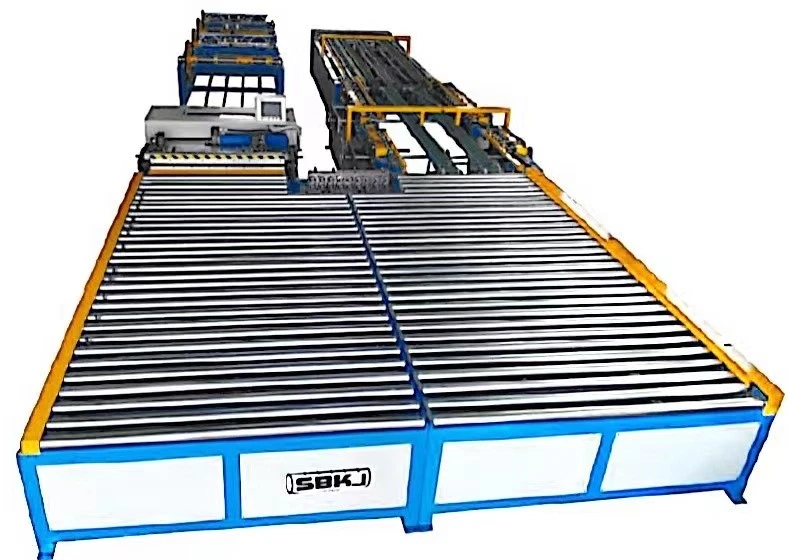

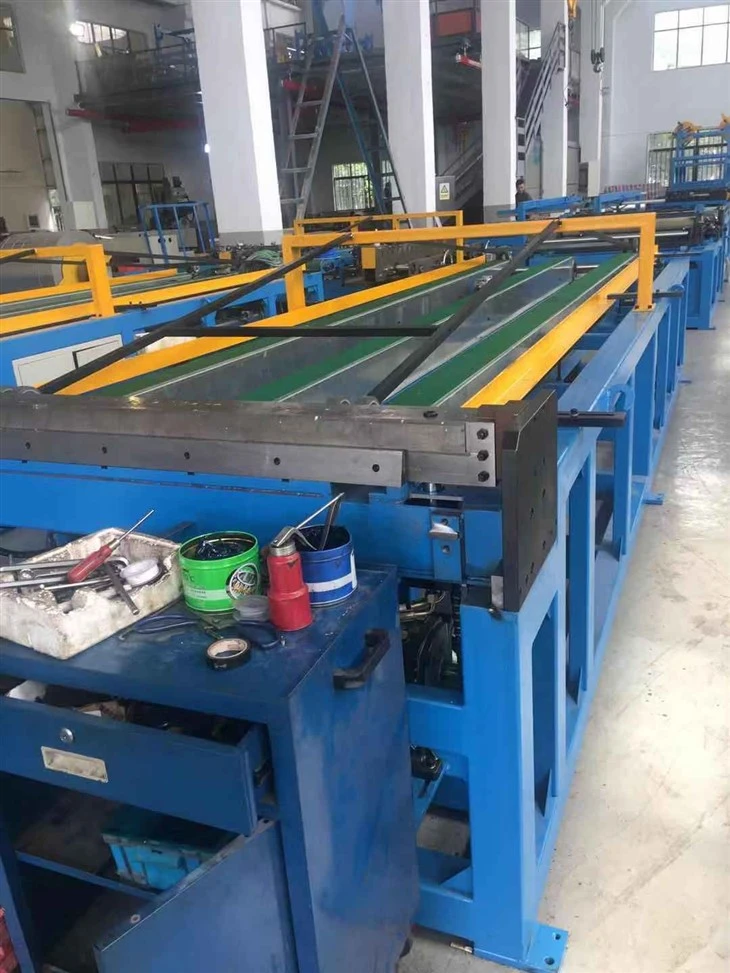

Square Duct Former Manufacture Auto Line Machine
Square duct qub tsim nws pib kab tshuab Kev Ua Haujlwm Nws yog tsuas yog rau TDF / lub kaum sab xis steel / C-puab flange sib sau nrog kev ua haujlwm txhua hnub ntawm 1000-2500 square meters. Tsuas yog nrog inputting qhov ntev hauv duct, cov kab ntau lawm tuaj yeem ua tiav uncoiling, leveling, beading, ...
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Product Introduction
Square duct qub tsim nws pib kab tshuab
Muaj nuj nqi
Nws yog tsuas yog rau TDF / kaum sab xis steel / C-puab flange sib sau nrog kev ua haujlwm txhua hnub ntawm 1000-2500 square meters. Tsuas yog nrog inputting qhov ntev hauv duct, cov kab ntau lawm tuaj yeem ua tiav uncoiling, leveling, beading, xuas nrig ntaus, shearing, xauv, tsim TDF / kaum steel / C-shaped flange thiab folding.
Qhov zoo
1. Lub tshuab yog U-zoo li tus, yooj yim rau nruab thiab nws yog tsim rau me me los yog nruab nrab-qhov loj qhov chaw ua hauj lwm-khoom vim nws occupies ib tug me me daim.

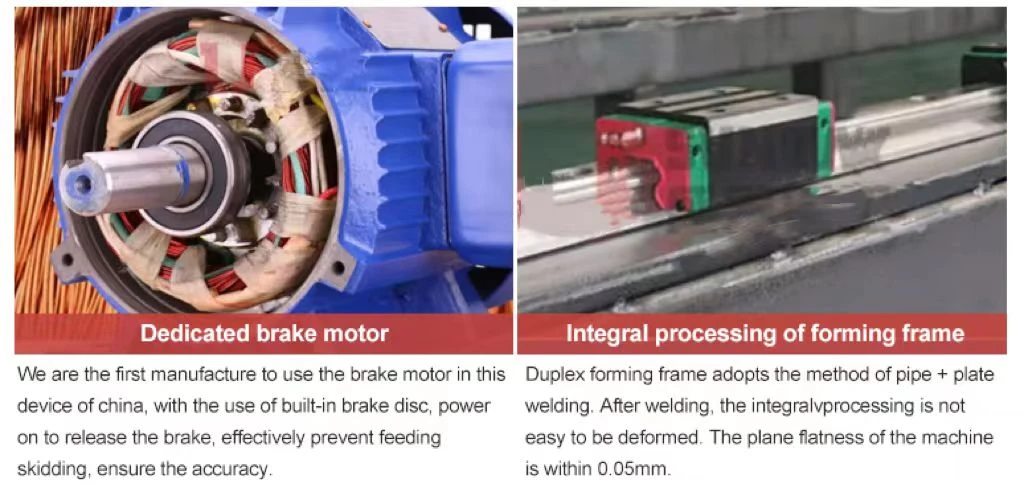

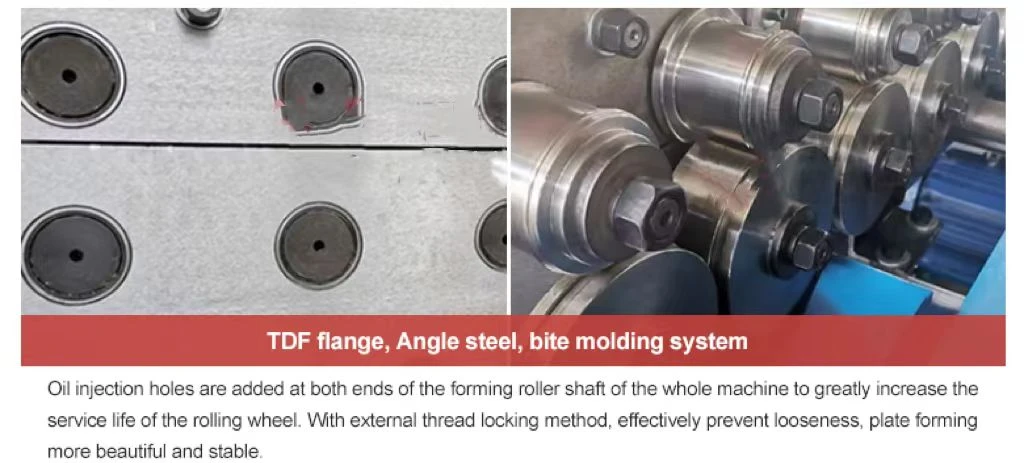

2. Lub qhov txhaj tshuaj yog siv nyob rau ntawm ob qho kawg ntawm tus ncej tsav, txhawm rau txhim kho cov kabmob lub neej.

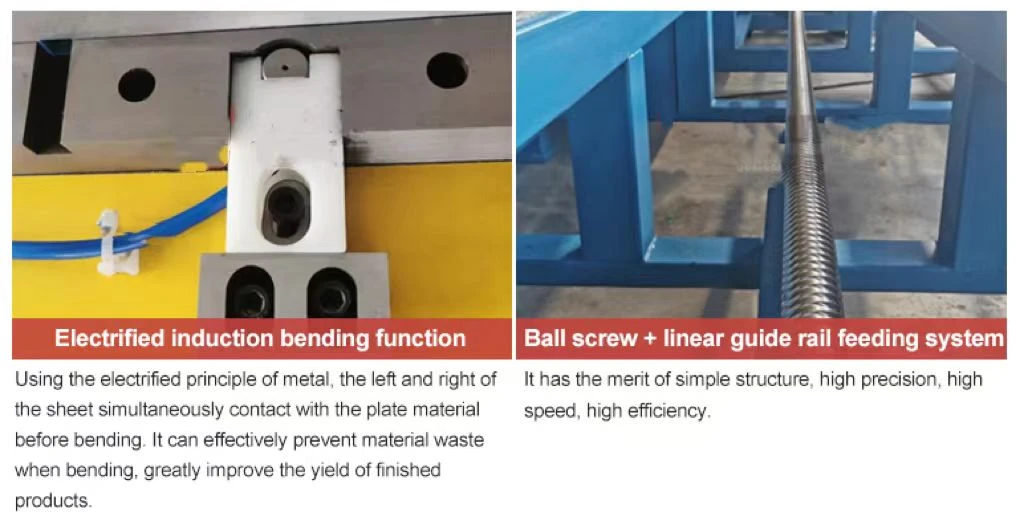

3. Lub zog khoov muaj nuj nqi yog siv los tiv thaiv kev tsim cov khoom pov tseg thiab xyuas kom meej qhov zoo tshaj plaws dabtsi yog khoov raug.
4.Nws tsuas yog siv sijhawm 20-25 vib nas this los ua ib qho L-shaped workpiece thiab qhov ua tau zoo yuav muab piv nrog rau hom kab.
5.Yog tsis txav rov qab mus rau lub tshuab xauv ruaj khov tuaj yeem txhim kho qhov ua tau zoo.
6.Tag nrho cov dov reels yog ua los ntawm cov kabmob steel kom lub neej ntev ntev ntawm ntau tshaj 5 zaug.
7. Nyob rau hauv cov khoom-txuag hom ntawm CNC system, pov tseg tsawg dua 20mm ib yob.
8.With ntau lawm nco functions, ntau lawm txiav txim yuav tau taug qab thiab xyuas.
9.Nws tsuas yog xav tau ib lossis ob tus neeg ua haujlwm, Txuag ntau ntawm kev ua haujlwm thiab ua kom cov khoom ua tau zoo.
Main Import Configuration
1.Beijing Huade ntxiv hydraulic system los ntawm Taiwan
2. Nyiv Omron encoder
3.Taiwan Hiwin linear guideways
4.Schneider hluav taws xob system

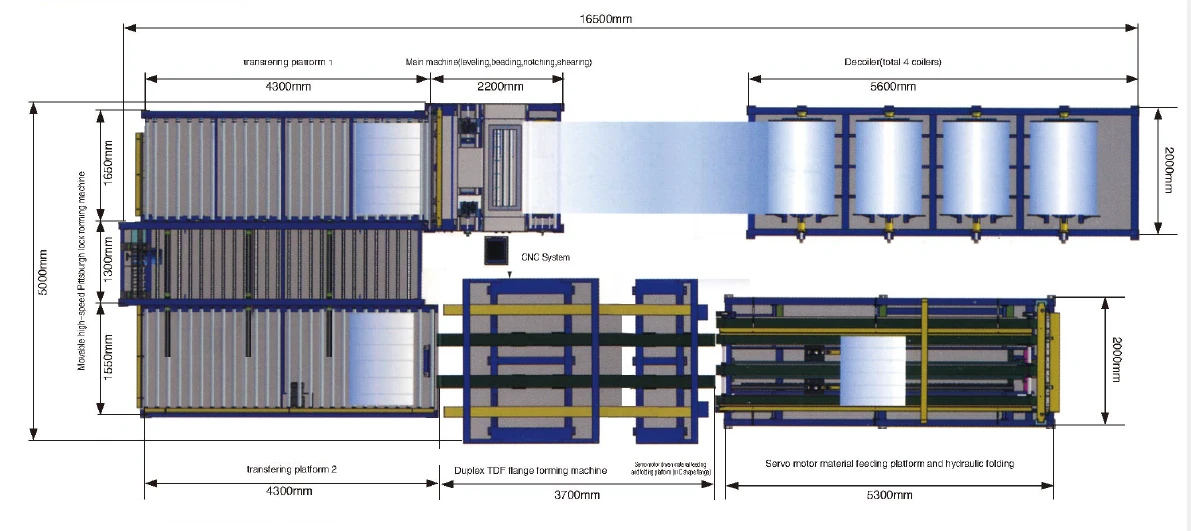

Basic Configuration
1.Ob lub txaj hluav taws xob, 4 cov khoom siv (8t txhua yob)
2.Ib rack
3.Ib tus tswv tsev (kab 2 tus tswv)
4.Ob lub stainless hlau menyuam conveyer platforms
5.Ib qho ruaj khov tshuab xauv lub tshuab
6.One duplex TDF flange txoj kev tshuab
7.One duplex lub kaum sab xis steel flange txoj kev tshuab
8.One servo noj platform
9. Ib lub tshuab folding hydraulic
10.Ib txheej ntawm lub computer tswj system
Technical Data
|
Hom |
Thickness |
Ua hauj lwm ceev |
Dav |
Muaj peev xwm |
Qhov hnyav |
Dimension |
||
|
SBAL-V-1250 |
0 5-1.2 hli |
12m / min |
1250 hli |
8 000kg |
15 000 kg |
24 000 mm |
3500 hli |
1500 hli |
|
SBAL-V-1550 |
0 5-1.2 hli |
12m / min |
1250 hli |
8 000kg |
16 000kg |
24 000 mm |
3800mm |
1500 hli |

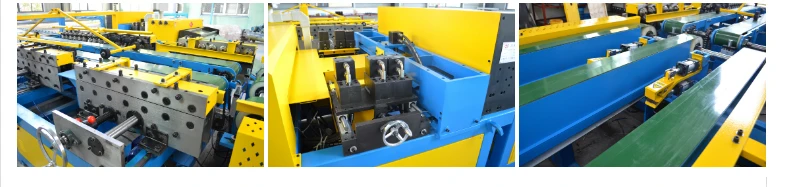

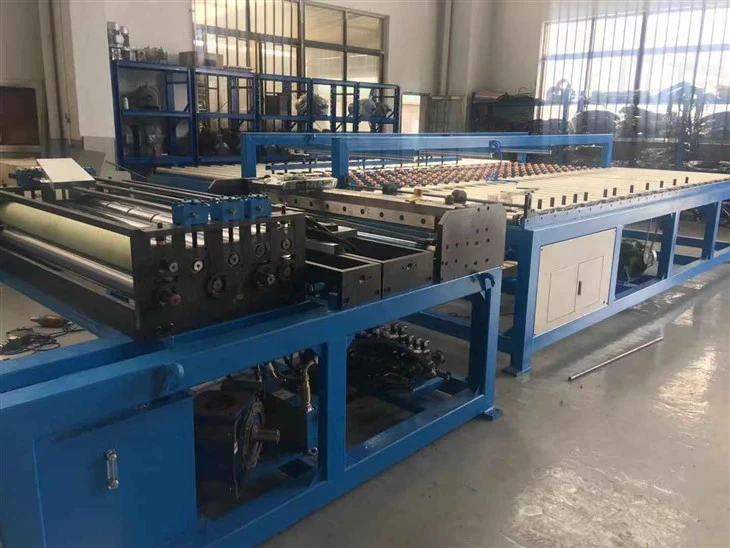

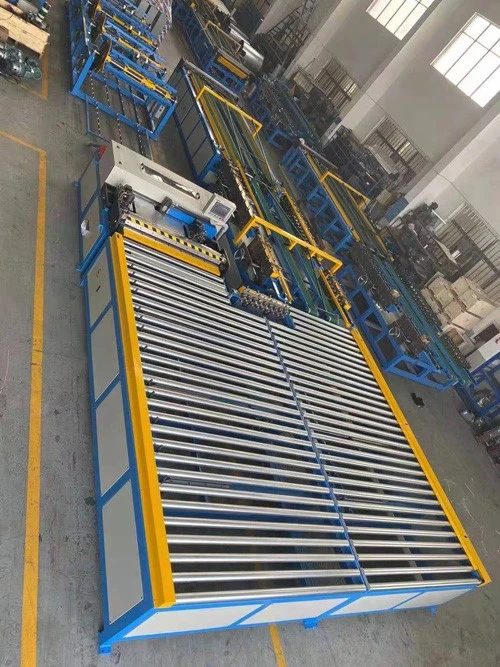

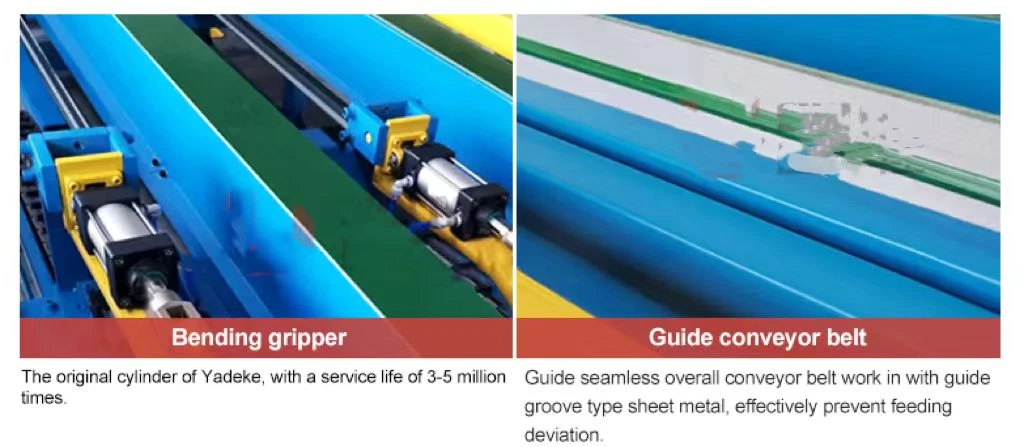

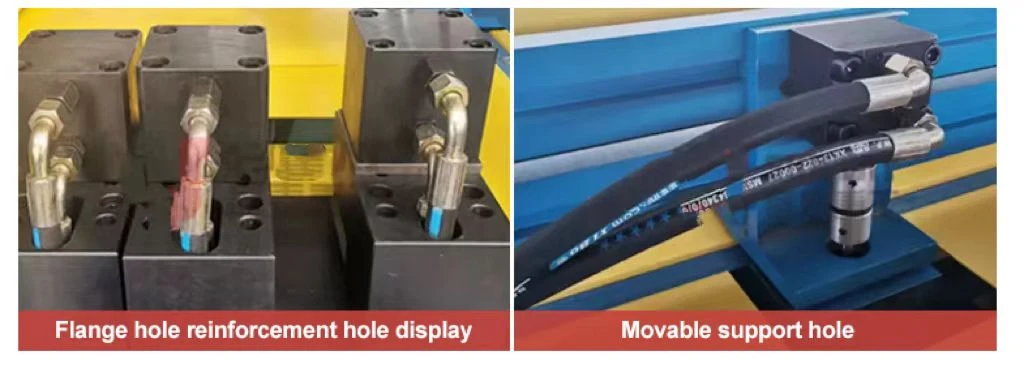

Cov duab ntxaws

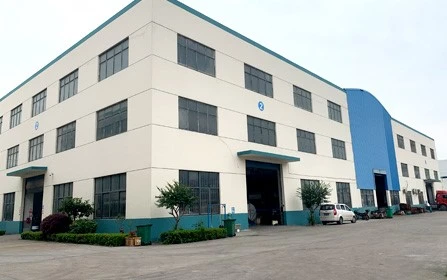

Peb lub Hoobkas
SBKJ SPIRAL TUBEFORMER yog raws li nyob rau hauv Yangze River Delta, nyob ze Shanghai, Suav teb.Our lub tuam txhab yog lub teb chaws tshiab high-tech enterprise uas yog tshwj xeeb nyob rau hauv kev tsim kho thiab siv cov cav tov, xws li raj txoj kev tshuab, plasma tej tshuab, rau cov ntau lawm ntawm round ducting thiab fttings hauv cov ntawv hlau, feem ntau yog rau kev lag luam huab cua thiab qhov cua. Peb tau txais daim ntawv pov thawj ISO9001: 2000 thiab CE. Peb cov neeg muas zaub los ntawm ntau
tshaj 60 lub teb chaws hauv ntiaj teb.
SBKJ kev tshawb fawb thiab kev loj hlob yog lub comerstone rau peb tsis siv neeg tubeformers uas tsim ib tug zoo dua duct nrog txo nqi ntau lawm. Ntau qhov kev tsim muaj patented, xws li Flying Slitter thiab Flying Crimper tau tsim SBKJ ua qhov tseem ceeb tshaj plaws thiab ua tus tsim kho tshiab hauv kev tsim cov kav dej.
Peb cov kws tshaj lij kws tshaj lij yuav teeb tsa thiab teeb tsa txhua lub tshuab SBKJ thiab cob qhia koj cov neeg ua haujlwm ntawm txhua yam ntawm lub tshuab ua haujlwm thiab kev saib xyuas. Peb zoo siab txais tos cov phooj ywg hauv tsev thiab thoob ntiaj teb los koom tes nrog peb.

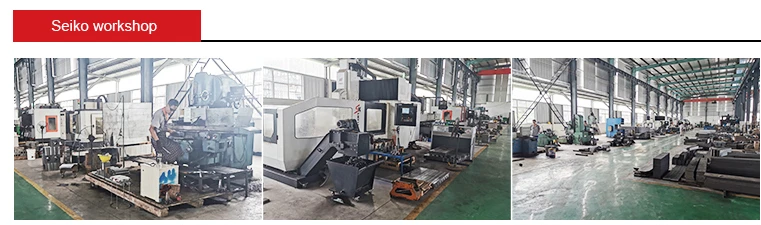

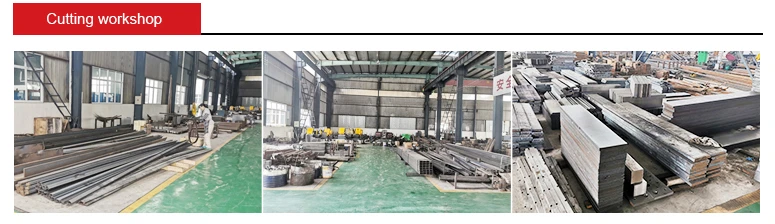

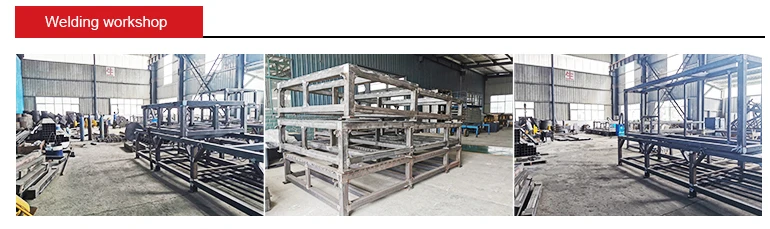

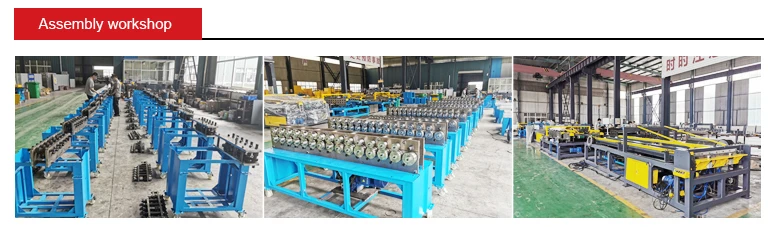

Rhiav

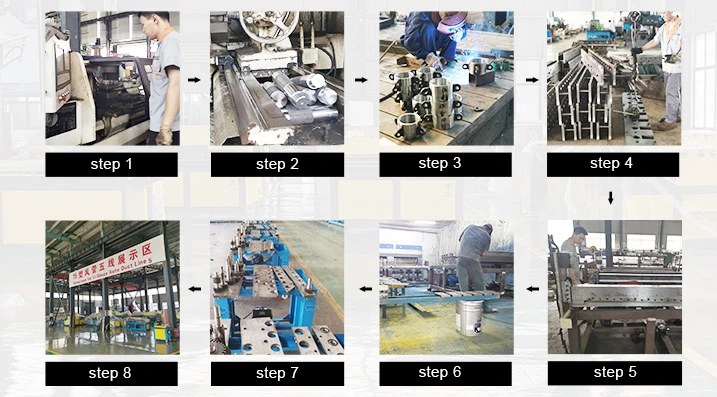

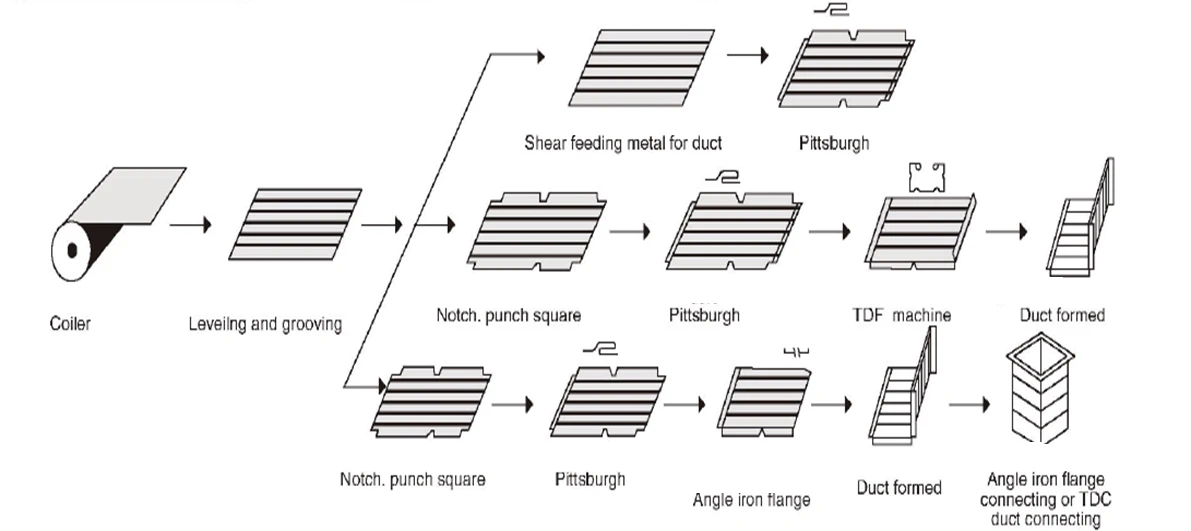

Txheej Txheem Flow
